VACUU·SELECT + VSP 3000, KF DN 16Package fine vacuum control
Overview
- Complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from 5 mbar to fine vacuum (10-3 mbar)
- graphic user interface for simple operation
- predefined applications for quick, reproducible results
- application editor allows easy customization
- proprietary Pirani-type fine vacuum gauge offers superior chemical resistance and mechanical robustness
Cat. No.
20700101
Package fine vacuum control in action

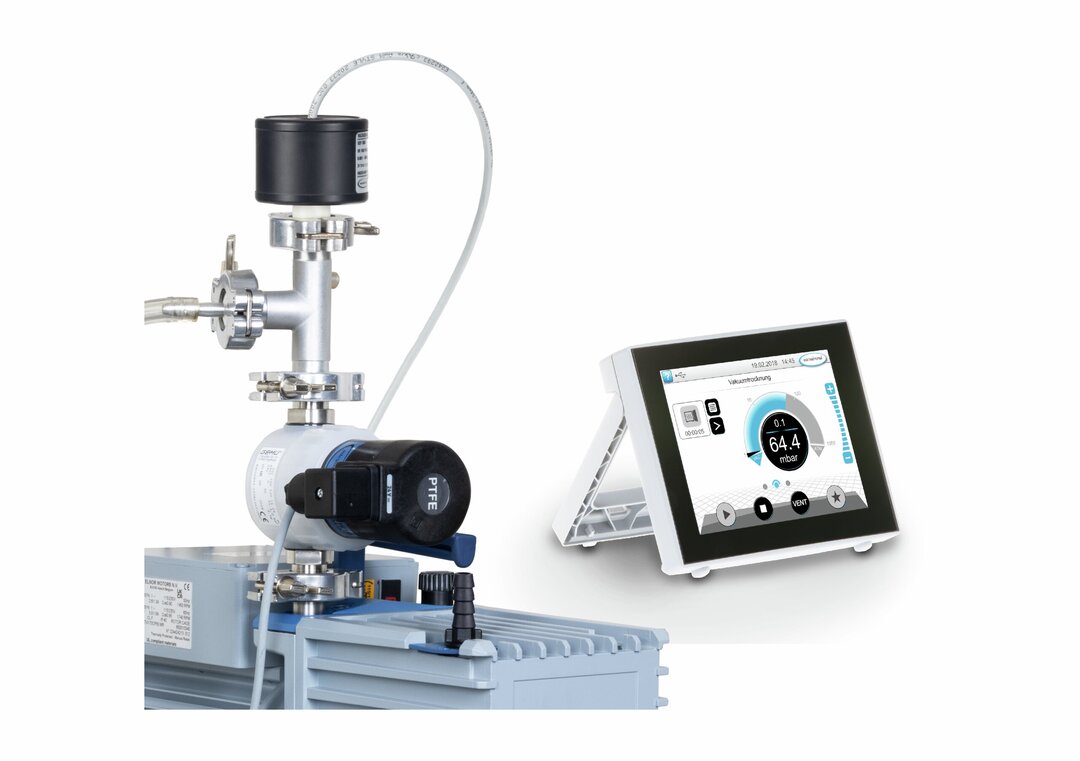

The VACUU·SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU·SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps and VACUU·PURE screw pumps. With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU·BUS system.
für Zoom klicken
| Promotion Label Select | -22% |
|---|
Technical data and graphs
| Upper measuring limit in mbar/hPa | 1000 mbar | |
| Upper measuring limit in torr | 750 torr | |
| Lower measuring limit in mbar/hPa | 1 x 10-3 | |
| Lower measuring limit in torr | 1 x 10-3 torr | |
| Measurement principle | Thermal conductivity (Pirani), chemically resistant plastics / ceramics | |
| Accuracy of measurement | +- 15% of indicated value in the range 0.01-5 mbar/hPa/torr mbar/hPa/torr | |
| Vacuum sensor | VSP 3000 | |
| Temperature coefficient | +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K | |
| Vacum connection | Small flange KF DN 16 / hose nozzle DN 10 mm | |
| Venting valve | No | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Max. media temperature for continuous operation | 40 °C | |
| Max. media temperature short term | 80 °C | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Protection class IEC 60529 | IP 40 | |
| Protection class UL50E | Type 1 | |
| Protection class front side IEC 60529 | IP 41 | |
| Protection class UL50E front side | Type 2 | |
| Dimension L in mm | 152 mm | |
| Dimension B in mm | 127 mm | |
| Dimension H in mm | 41 mm | |
| Weight | 0.6 kg | |
| Max. current for VACUU BUS (24V DC) | 4 A | |
| Cable length connection in m | 2 m | |
| Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) | |
| NRTL certification | Yes | |
| Items supplied | Package for fine vacuum control, consisting of: Vacuum controller VACUU-SELECT (without internal vacuum sensor and venting valve) with VSP 3000 and power supply, solenoid valve VV-B 15C KF DN 16, T-piece KF DN 16, hose nozzle DN 10 mm (PP), clamping and sealing rings, ready for use, with manual. |
