Vacuum valves
Included in the wide range of accessory items available from BRANDTECH is our selection of butterfly and ball valves. VACUUBRAND VS and VK series valves are manually operated isolation valves for your vacuum process and are available with small flange KF DN 16 or KF DN 25.
-

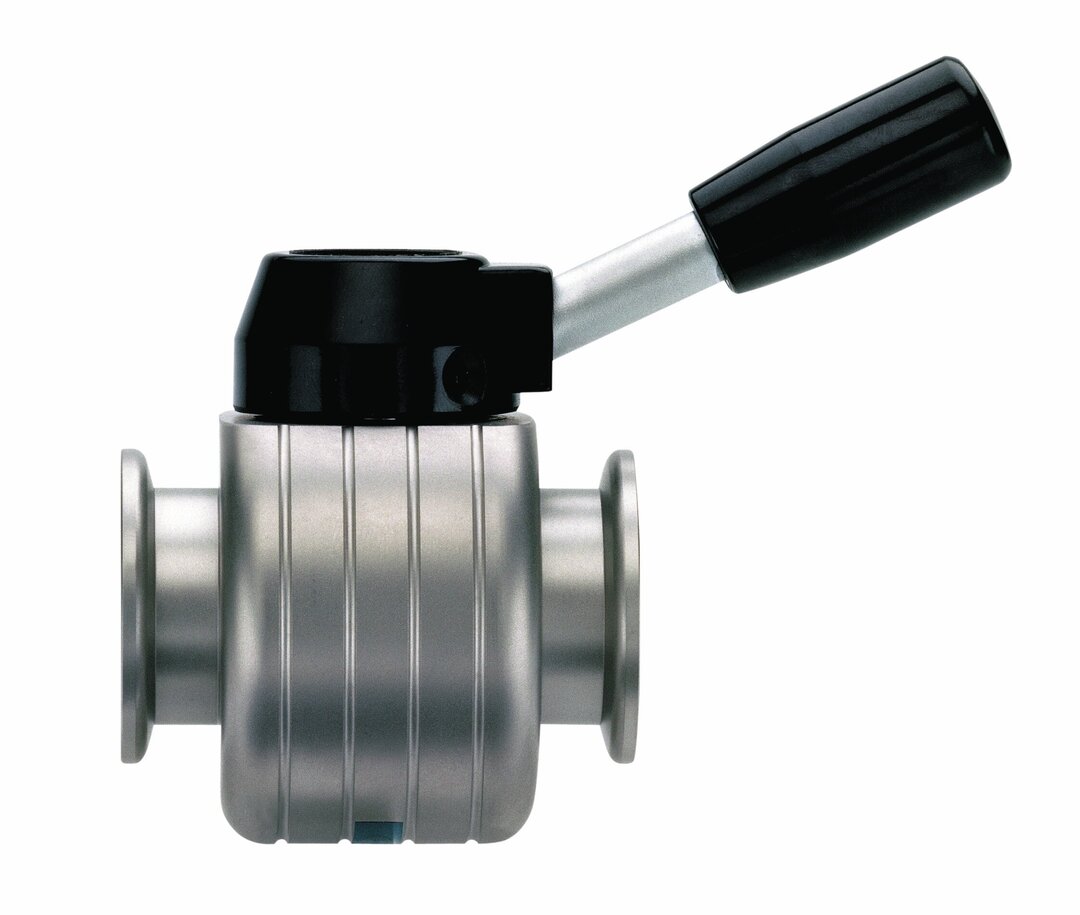

In-line valve VS 16, stainless steel,small flange KF DN 16 VS 16 Butterfly valve- High conductance
- Minimal degassing rate
- Leak rate 1 x 10-6 mbar l/s
-
In-line valve VS 25, stainless steel,small flange, KF DN 25 VS 25 Butterfly valve
- High conductance
- Minimal degassing rate
- Leak rate 1 x 10-6 mbar l/s
-
In-line valve VS 16C, stainless steel,with small flange KF DN 16 VS 16C Butterfly valve
- High conductance
- Minimal degassing rate
- Leak rate 1 x 10-6 mbar l/s
-
In-line valve VS 25C, stainless steel,with small flange KF DN 25 VS 25C Butterfly valve
- High conductance
- Minimal degassing rate
- Leak rate 1 x 10-6 mbar l/s
-

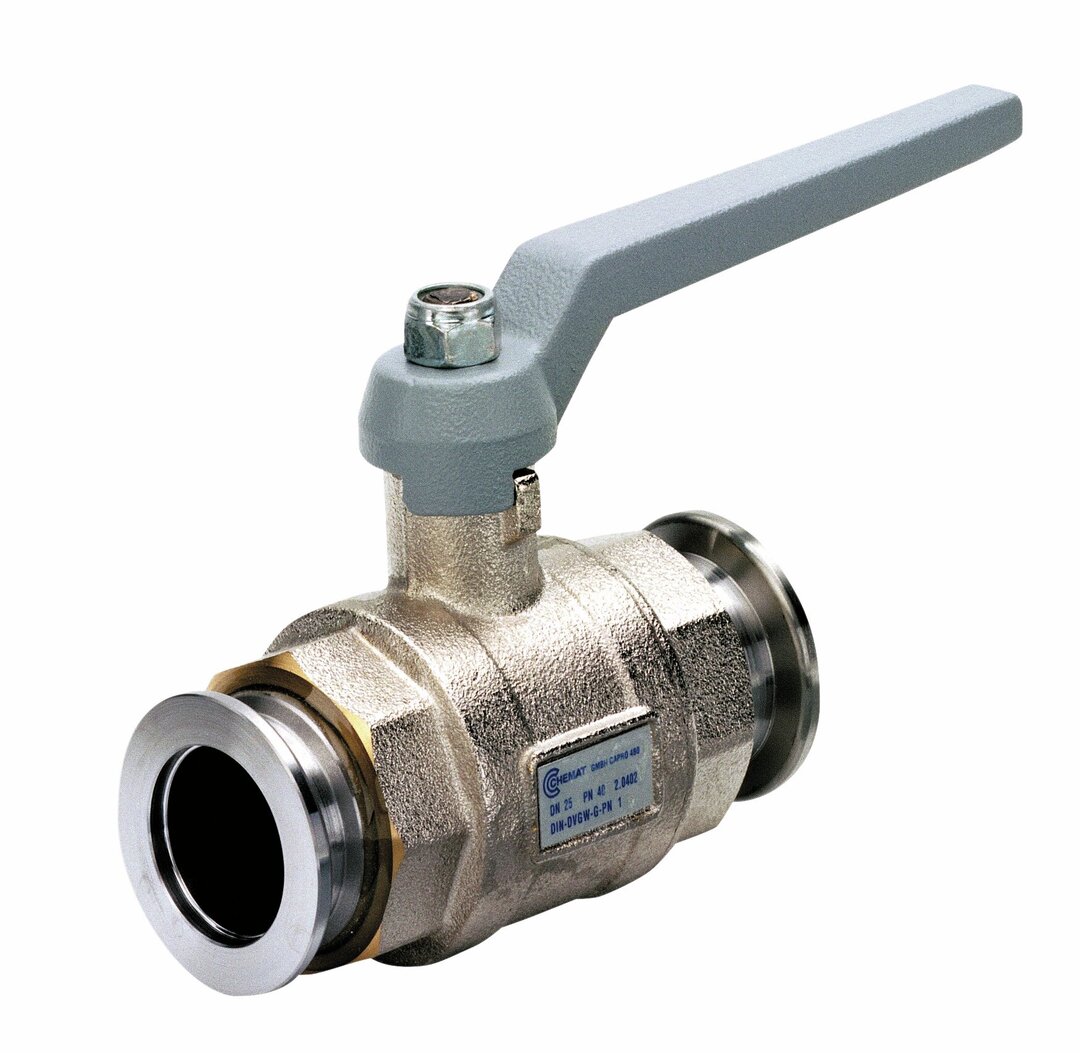

Ball valve VK 16, brass, small flange,KF DN 16 VK 16 Ball valve- For rough and fine vacuum range
- Leak rate 1 x 10-6 min l/s
-
Ball valve VK 25, brass, small flange,KF DN 25 VK 25 Ball valve
- For rough and fine vacuum range
- Leak rate 1 x 10-6 min l/s
-
Ball valve VKE 16, stainless steel,KF DN 16 VKE 16 Ball valve- For rough and fine vacuum range
- Leak rate 1 x 10-6 min l/s
-
Ball valve VKE 25, stainless steel,KF DN 25 VKE 25 Ball valve
- For rough and fine vacuum range
- Leak rate 1 x 10-6 min l/s
Included in the wide range of accessory items available from BRANDTECH is our selection of butterfly and ball valves. VACUUBRAND VS and VK series valves are manually operated isolation valves for your vacuum process and are available with small flange KF DN 16 or KF DN 25.
