VK 16Ball valve

Overview

Cat. No.
20665504
$480.00
- +

Inquire

Ball valve in action

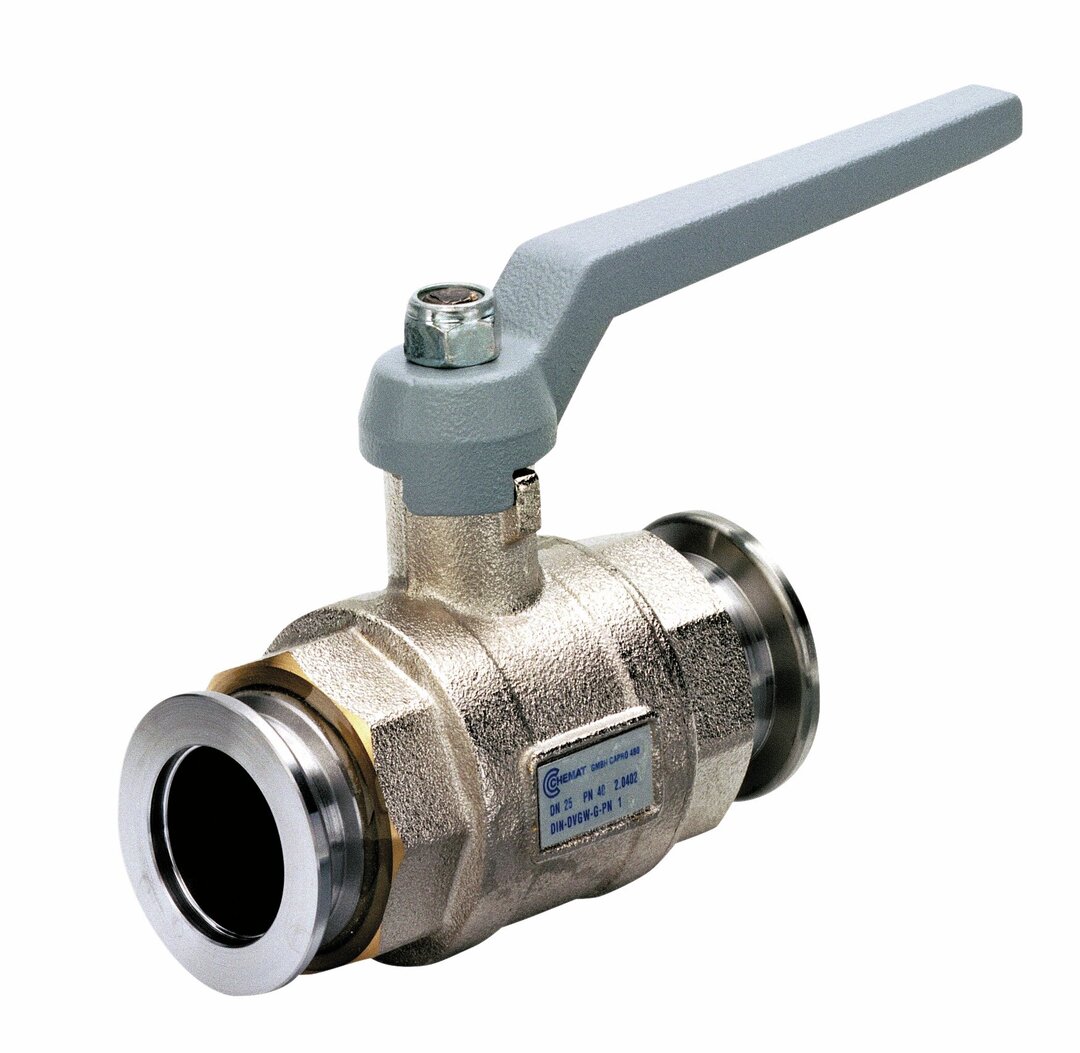

Ball valve VK 16, brass, small flange, KF DN 16

Valves of the VK series are sturdy isolation devices for the rough and fine vacuum range. A precisely machined ball with a hole through the middle is rotated by means of shaft and lever. When the valve is open, the hole provides unimpeded passage of media over the entire nominal cross section. Ball valves are therefore also used for load locks, e.g., for sample holders, thermocouples or helium supply lines. The VKE series uses stainless steel for the metal parts and fiberglass reinforced PTFE seatings.

für Zoom klicken

Technical data and graphs

Flange connection small flange KF DN 16
Operation Manual
Leakage rate 1 x 10-6 mbar l/s
Leakage rate of seat 1 x 10-6
Fitting length between flanges 80 mm
