VKE 25Ball valve
Overview
Cat. No.
20675505
Ball valve in action

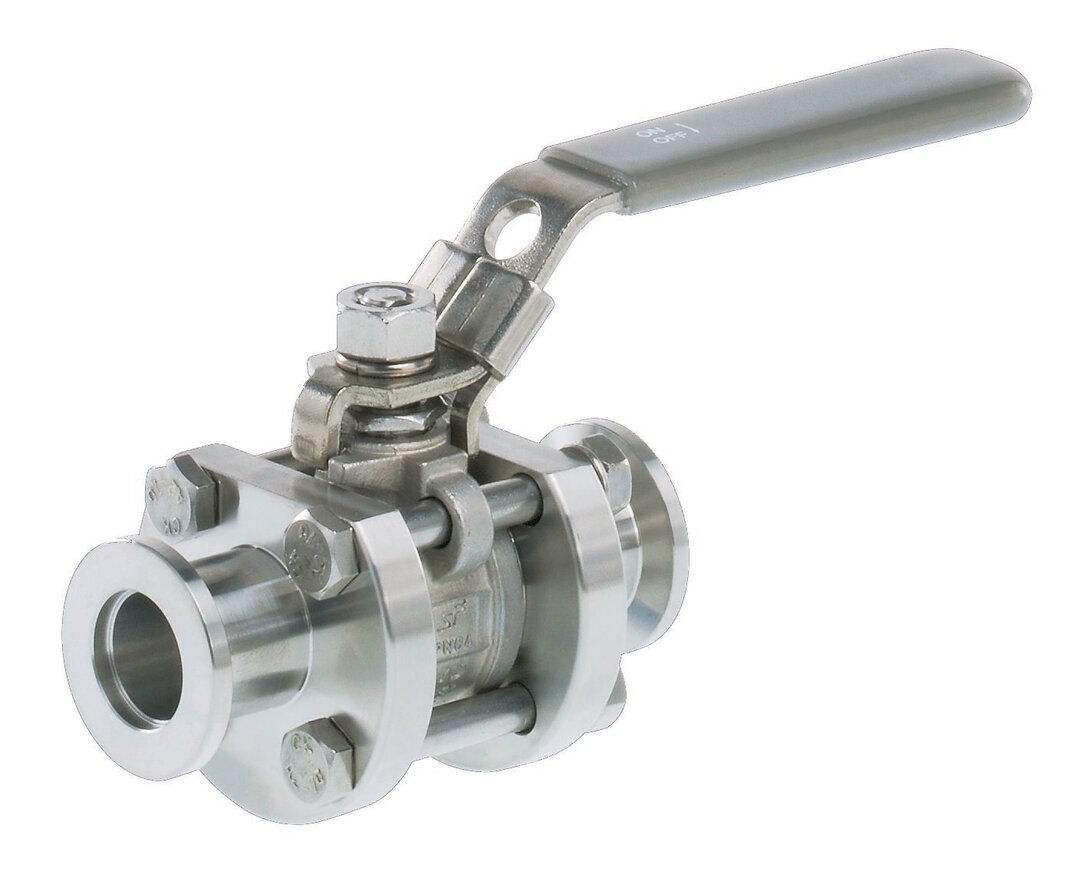

Ball valve VKE 25, stainless steel, KF DN 25
Valves of the VK series are sturdy isolation devices for the rough and fine vacuum range. A precisely machined ball with a hole through the middle is rotated by means of shaft and lever. When the valve is open, the hole provides unimpeded passage of media over the entire nominal cross section. Ball valves are therefore also used for load locks, e.g., for sample holders, thermocouples or helium supply lines. The VKE series uses stainless steel for the metal parts and fiberglass reinforced PTFE seatings.
für Zoom klicken
Technical data and graphs
| Upper ambient temperature (operation) | 80 °C | |
| Lower ambient temperature (operation) | 0 °C | |
| Max. gas temperature | 80 °C | |
| Flange connection | small flange KF DN 25 | |
| Operation | Manual | |
| Leakage rate | 1 x 10-6 mbar l/s | |
| Leakage rate of seat | 1 x 10-6 | |
| Fitting length between flanges | 100 mm |
