VM 25Diaphragm valve
Overview
- materials with high chemical resistance
- high conductance, low leakage rate
- flow control possible
- gas-tight against atmosphere in both directions
Cat. No.
20664011
Diaphragm valve in action

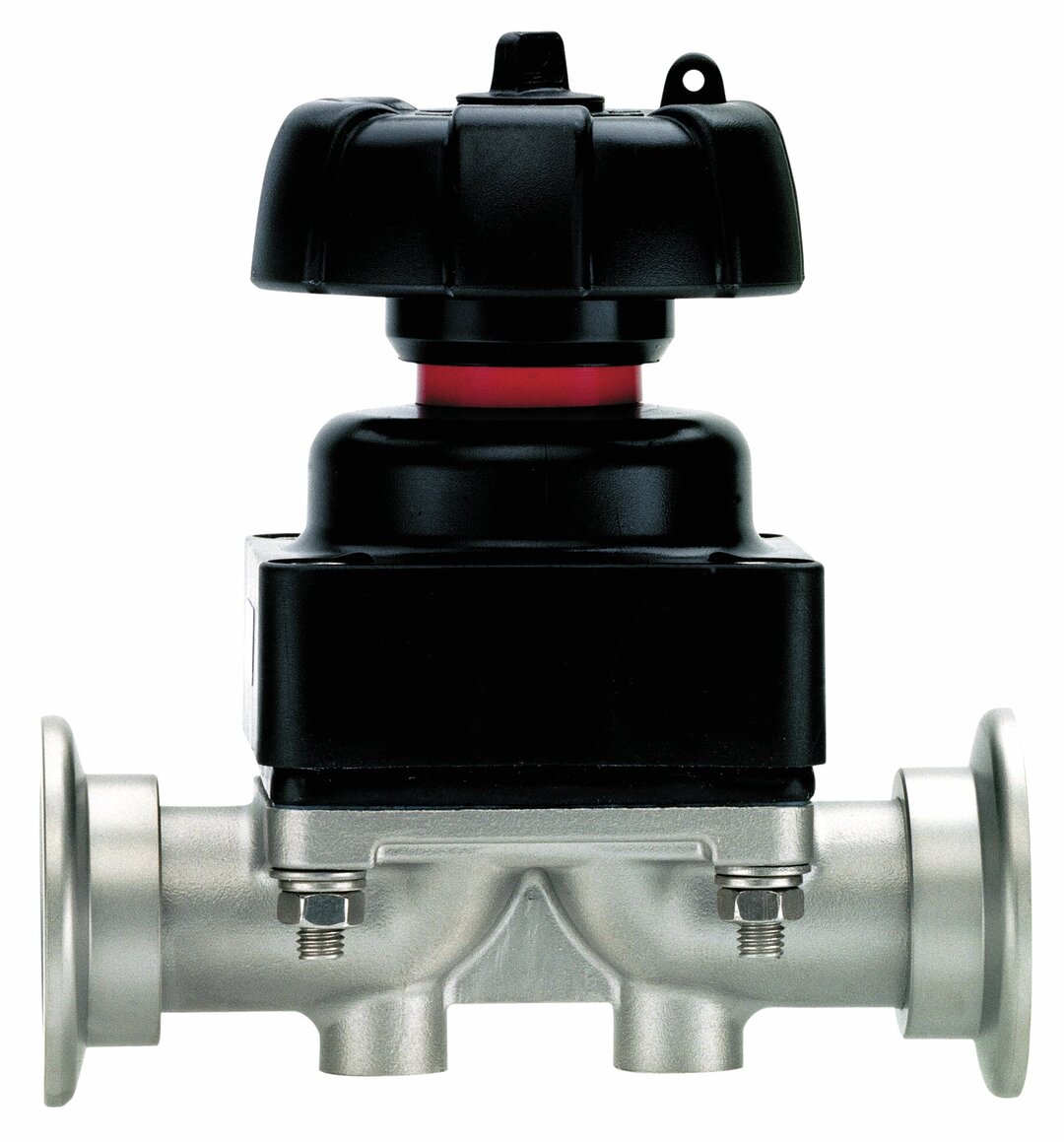

Diaphragm in-line valve VM 25
VM series valves are hand-operated diaphragm valves. They are used, e.g., as isolation valves, air-admittance valves or manual-control valves. By rotation of the wheel a flexible PTFE diaphragm is moved and pressed against the stainless steel seating or removed from it, closing and opening the valve, respectively. The gas-contacting parts are made of stainless steel and PTFE offering a good resistance to corrosive gases and vapors.
für Zoom klicken
Technical data and graphs
| Upper ambient temperature (operation) | 60 °C | |
| Lower ambient temperature (operation) | 0 °C | |
| Max. gas temperature | 80 °C | |
| Flange connection | small flange KF DN 25 | |
| Operation | Manual | |
| Leakage rate | 1 x 10-4 mbar l/s | |
| Fitting length between flanges | 100 mm |
