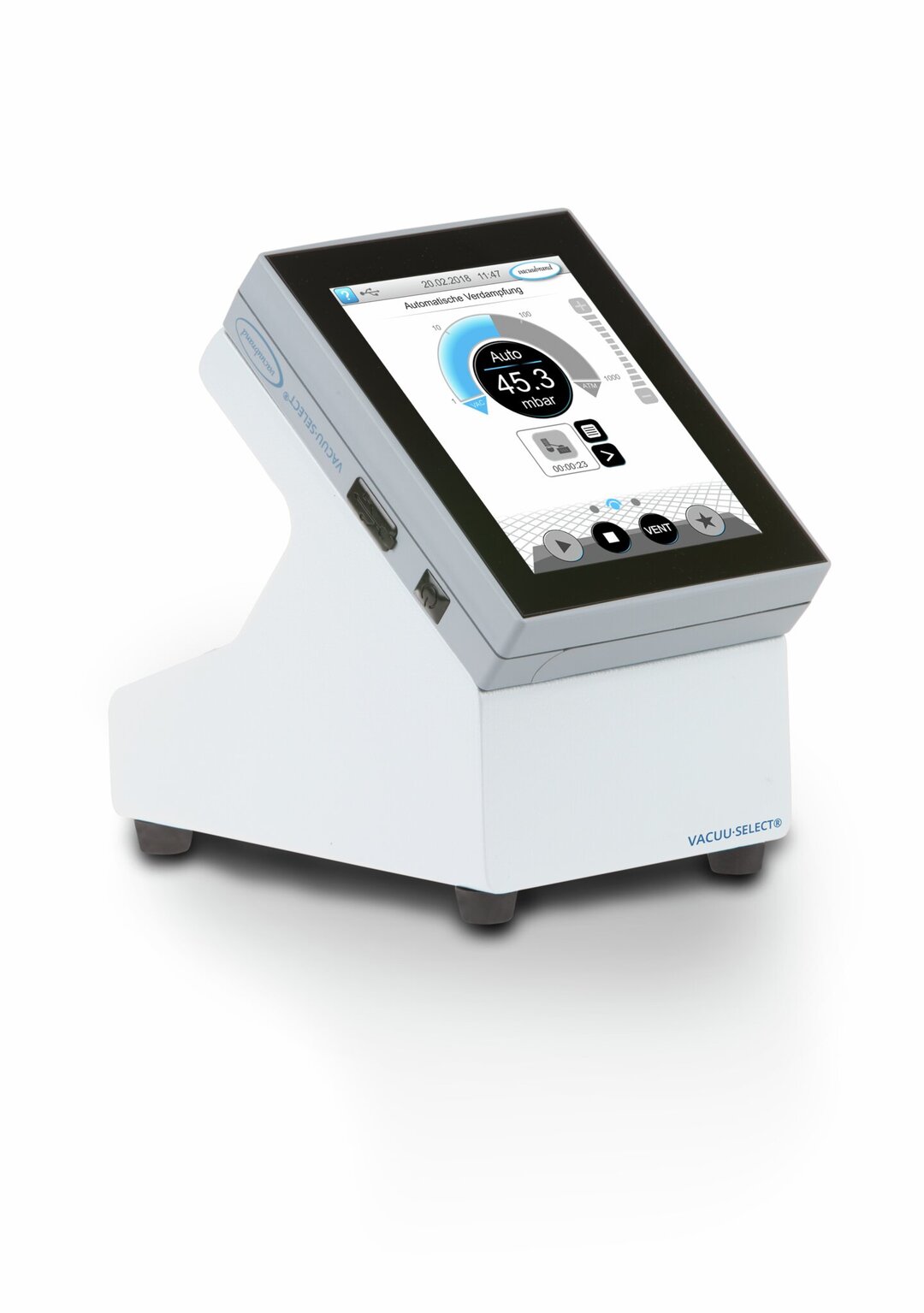

VACUU·SELECT + VACUU·VIEW extended, KF DN 25Package fine vacuum control (stainless steel)

Overview

  • complete package for vacuum control of all fine vacuum applications in chemical labs, with continuous control range from atmosphere to fine vacuum (10-3 mbar)
  • Metal components made of stainless steel for better chemical resistance
  • graphic user interface for simple operation
  • predefined applications for quick, reproducible results and application editor for easy customization
  • rugged VACUU·VIEW extended gauge with wide measuring range offers superior chemical resistance and mechanical robustness
Cat. No.
20700110
Upon Request $6,000.00
- +

Inquire

Package fine vacuum control (stainless steel) in action

The VACUU·SELECT fine vacuum control packages provide an easy-to-use vacuum control option for work down to 10-3 mbar. These packages include the VACUU·SELECT controller with fine vacuum gauge, a chemical-resistant inline isolation valve (VV-B 15C), and the accessories required for connection to your vacuum system via small flange (KF) connections. VACUUBRAND offers fine vacuum control packages with two different small flange connections. The KF DN 16 fine vacuum control package is compatible with our rotary vane pump models RE / RZ 2.5 to RE / RZ 6 and our HYBRID pump RC 6. The KF DN 25 fine vacuum control package is configured for use with our RE / RZ 9 rotary vane pumps and VACUU·PURE screw pumps. With its intuitive, application-based user interface, the controller allows you to quickly get your fine vacuum process under control. For advanced processes, pre-defined applications can be modified, and new applications can be created to optimize your process conditions. The included inline solenoid valve and sensor are automatically configured via the proprietary VACUU·BUS system.

für Zoom klicken

Technical data and graphs

Upper measuring limit in mbar/hPa 1100 mbar
Upper measuring limit in torr 825 torr
Lower measuring limit in mbar/hPa 1 x 10-3
Lower measuring limit in torr 1 x 10-3 torr
Measurement principle Ceramic diaphragm sensor + ceramic jacketed Pirani sensor
Accuracy of measurement +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr
Vacuum sensor VACUU·VIEW extended
Temperature coefficient +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K
Vacum connection Small flange KF DN 25 / hose nozzle DN 15 mm
Venting valve No
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Max. media temperature for continuous operation 40 °C
Max. media temperature short term 80 °C
Material of outer housing Robust plastic housing with good chemical resistance
Protection class IEC 60529 IP 40
Protection class UL50E Type 1
Protection class front side IEC 60529 IP 41
Protection class UL50E front side Type 2
Dimension L in mm 152 mm
Dimension B in mm 127 mm
Dimension H in mm 41 mm
Weight 0.6 kg
Max. current for VACUU BUS (24V DC) 4 A
Cable length connection in m 2 m
Interface Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
NRTL certification Yes
Items supplied Package for fine vacuum control, stainless steel, consisting of: Vacuum controller VACUU·SELECT (without internal vacuum sensor and venting valve) with VACUU·VIEW extended and power supply, solenoid valve VV-B 15C KF DN 25, T-piece KF DN 25, hose nozzle DN 15 mm (PP), clamping and sealing rings, ready for use, with manual.

Downloads

VACUU·SELECT package for fine vacuum control withVACUU·VIEW extended for KF DN 25, stainless steel,with in-line, isolation valve VV-B 15C, T-piece,hose nozzle DN, 10 and connecting parts DN 25,100-230V / 50-60Hz, plug CEE
VACUU·SELECT + VACUU·VIEW extended, KF DN 25 Package fine vacuum control (stainless steel)
Manual assembly
Manual PDF 1.1 MB
Multilingual Download
Manual vacuum gauge / controller
Manual PDF 17.5 MB 17.4 MB 17.4 MB 17.5 MB 17.4 MB 17.5 MB 1.1 MB 17.4 MB 17.8 MB 17.5 MB 17.5 MB 17.4 MB 17.5 MB 17.5 MB 17.3 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download
Manual interface
Manual PDF 1.8 MB 1.8 MB
Download Download
Manual function extension
Manual PDF 11.6 MB 11.4 MB
Download Download
