ME 8S NTDiaphragm pump

Overview

  • contamination-free pumping and evacuation
  • high flow rate even near ultimate vacuum
  • whisper quiet
  • very low vibration
  • exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

Ultimate vacuum

80 mbar

Max. pumping speed 50 Hz

7.1 m3/h

Diaphragm pump in action

für Zoom klicken

Technical data and graphs

Max. pumping speed 50 Hz 7.1 m3/h Select diagram
Max. pumping speed 60 Hz 4.6 cfm Select diagram
Ultimate vacuum 80 mbar / 60 torr
Number of heads 4
Number of stages 1
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 2 bar
Inlet connection Hose nozzle DN 8-10 mm
Outlet connection 2 x silencer / G1/4"
Rated motor power 0.25 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 328 mm
Dimension B in mm 239 mm
Dimension H in mm 198 mm
Weight 16.4 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 45 dBA
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

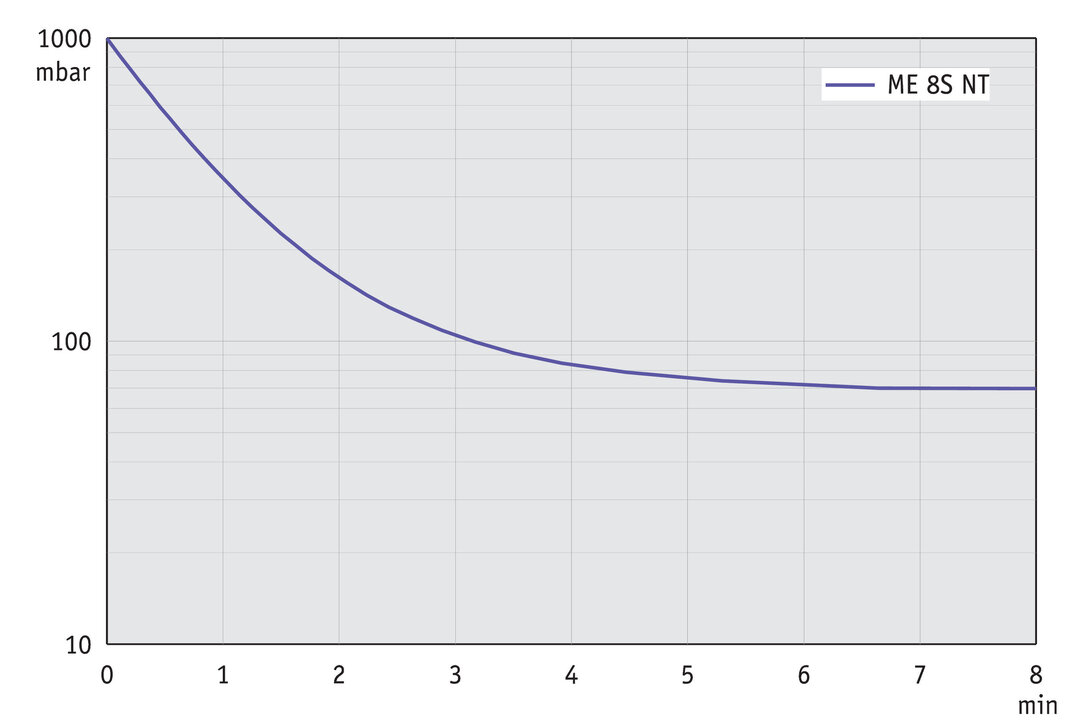

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (100 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (100 l volume)

Downloads

ME 8S NT Diaphragm pump
ME 8S NT Diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 7.2 MB 7.1 MB 7.1 MB 7.1 MB 7.2 MB 7.1 MB 7.2 MB 7.2 MB 7.8 MB 7.2 MB 7.2 MB 7.2 MB 7.2 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download
