Product description

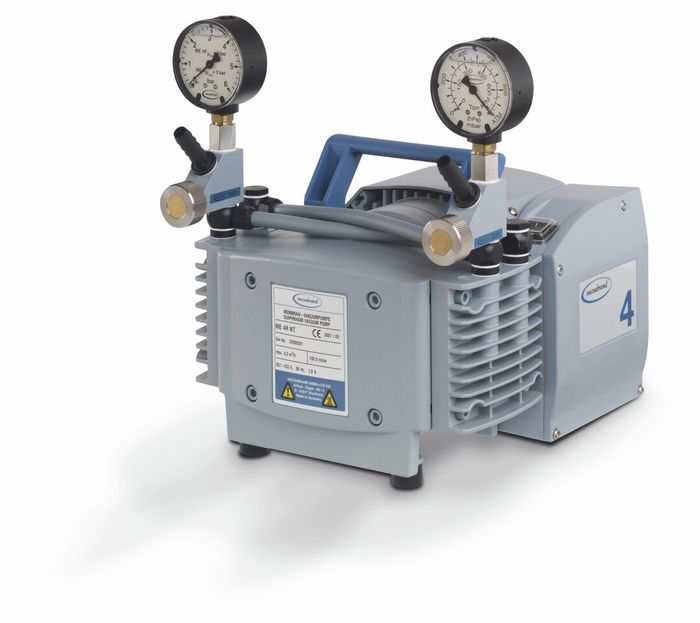

ME 4R NT

Diaphragm pump

This one-stage diaphragm pump works as a vacuum generator and as well as a compressor. All parts in contact with pumped media are made of aluminum and selected plastics (PTFE diaphragms and valves). They enable a wide range of applications for non-corrosive gases. The inlet and outlet connections of the ME 4R NT are equipped with regulator valves for vacuum and overpressure, respectively. Both the compression pressure and vacuum level can be adjusted. Inlet vacuum level and outlet pressure are indicated by manometers.

Accessories and spare parts
ME 4R NT Set of diaphragms and valves
20696859
$183.00
Technical Data

Technical data

Please select a product to view technical data.

Items supplied
Pump completely mounted, ready for use, with manual.
Items supplied Click to zoom
Downloads

Overview Downloads

Technical Data Sheet | PDF | 4.1 MB 4.1 MB 4.1 MB 4.1 MB 4.1 MB
Safety information
Multilingual Download download
Safety information | PDF | 2.7 MB
