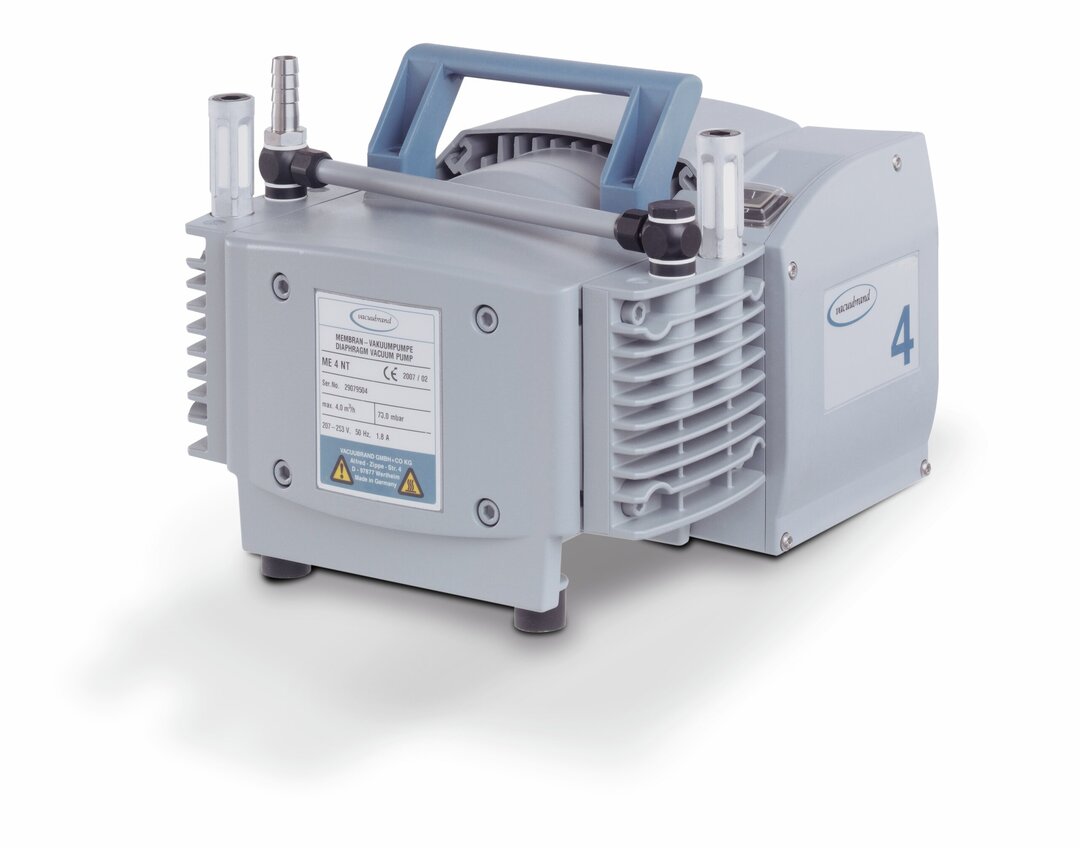

ME 4 NTDiaphragm pump

Overview

  • contamination-free pumping and evacuation
  • high flow rate even near ultimate vacuum
  • whisper quiet
  • ME 4 NT with low vibration and higher pumping speed
  • exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

Ultimate vacuum

70 mbar

Max. pumping speed 50 Hz

4 m3/h

Cat. No.
20731000
Upon Request $999,999.99

Inquire

Diaphragm pump in action

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The NT-series features further improved performance data. One-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping at modest vacuum requirements. In contrast to water jet pumps, they do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens, aqueous filtrations and pumping and evacuation of non-aggressive gases in general. The ME 4 NT offers shorter evacuation times and higher gas throughput.

für Zoom klicken

Technical data and graphs

Max. pumping speed 50 Hz 4 m3/h Select diagram
Max. pumping speed 60 Hz 2.6 cfm Select diagram
Ultimate vacuum 70 mbar / 52 torr
Number of heads 2
Number of stages 1
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 2 bar
Inlet connection Hose nozzle DN 8-10 mm
Outlet connection 2 x G1/4"
Rated motor power 0.18 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 245 mm
Dimension B in mm 239 mm
Dimension H in mm 198 mm
Weight 11.0 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 45 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, silencer, hose nozzle, with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

Diaphragm pump ME 4 NT, one stage,certification (NRTL): C/US230 V / 50-60 Hz, CEE mains cable
ME 4 NT Diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 7.2 MB 7.1 MB 7.1 MB 7.1 MB 7.2 MB 20 MB 7.2 MB 7.2 MB 7.8 MB 7.2 MB 7.2 MB 7.2 MB 7.2 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download
