PeltronicEmission condenser

Overview

Cat. No.
20699905
Upon Request $4,200.00
- +

Inquire

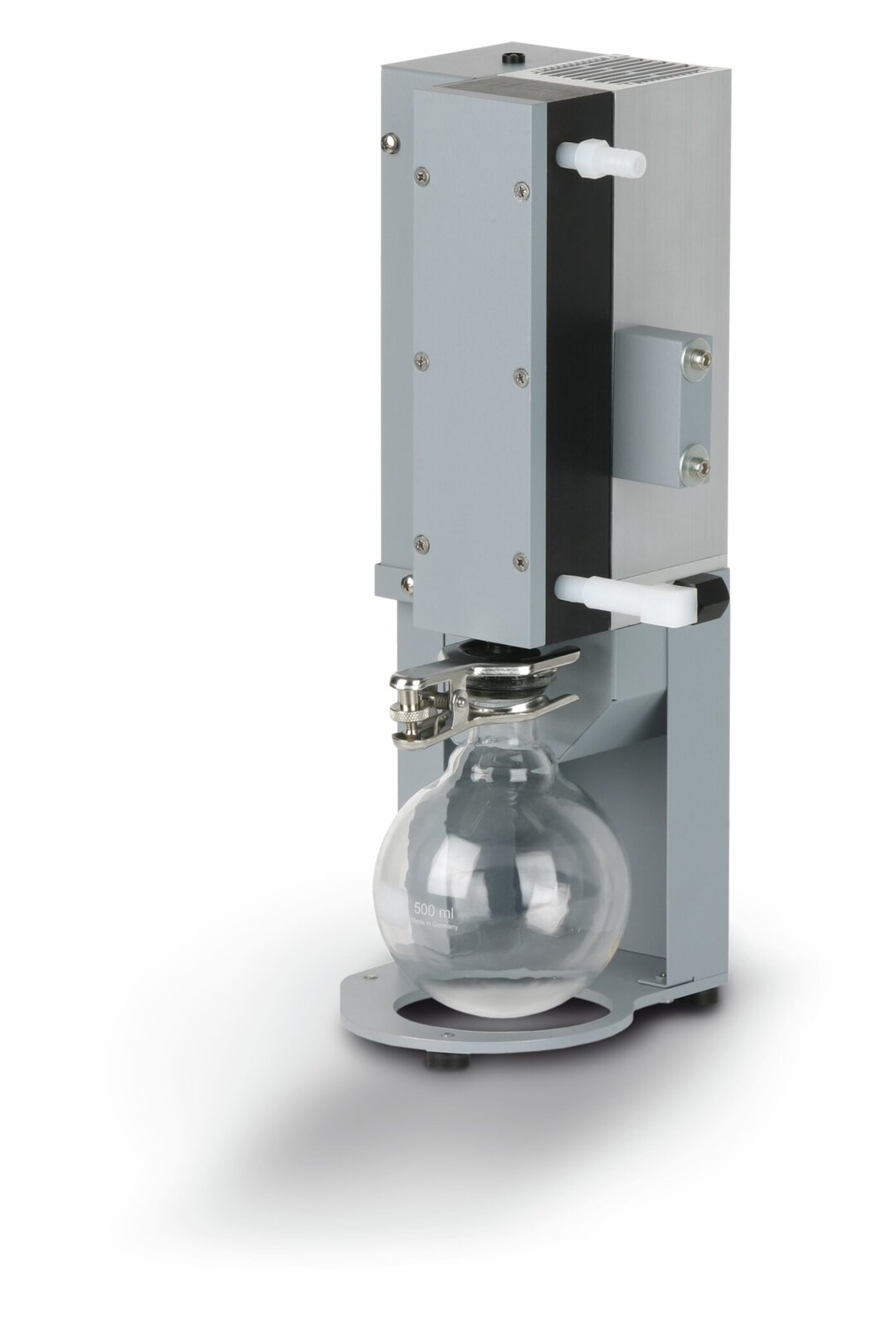

Emission condenser in action

Exhaust vapor condenser PELTRONIC 100-120/200-230 V 50-60 Hz

The Peltronic emission condenser performs condensation of solvent vapors without external coolant such as water or dry ice. It works electronically and uses Peltier elements as cooling system. All wetted parts are highly chemically resistant. The condenser is especially designed to be added to existing pumping units and allows the replacement of common condensers working with external coolant. The condenser is ideally suited for applications where cooling water is not available or desired, or in case of cost and productivity concerns associated with dry ice condensers. It is often used to reduce cooling water usage for environmental reasons or to prevent the risk of flooding from cooling water plumbing leakage. This frequently is requested for vacuum networks built into lab furniture. If the Peltronic is connected to a VACUU·SELECT or CVC 3000 vacuum controller it is switched on/off automatically on demand.

für Zoom klicken

Technical data and graphs

Items supplied Condenser ready for use with electronic control, status indicator, temperature control, switch, PTFE tubing ready to connect to many VACUUBRAND pumping units, catchpot 500ml, catchpot clamp. Universal power supply; please order power cable separately.

Downloads

Exhaust vapor condenser PELTRONIC100-120/200-230 V 50-60 Hz
Peltronic Emission condenser
Brochure
Brochure PDF 1.5 MB 1.5 MB 1.8 MB 1.5 MB
Download Download Download Download
