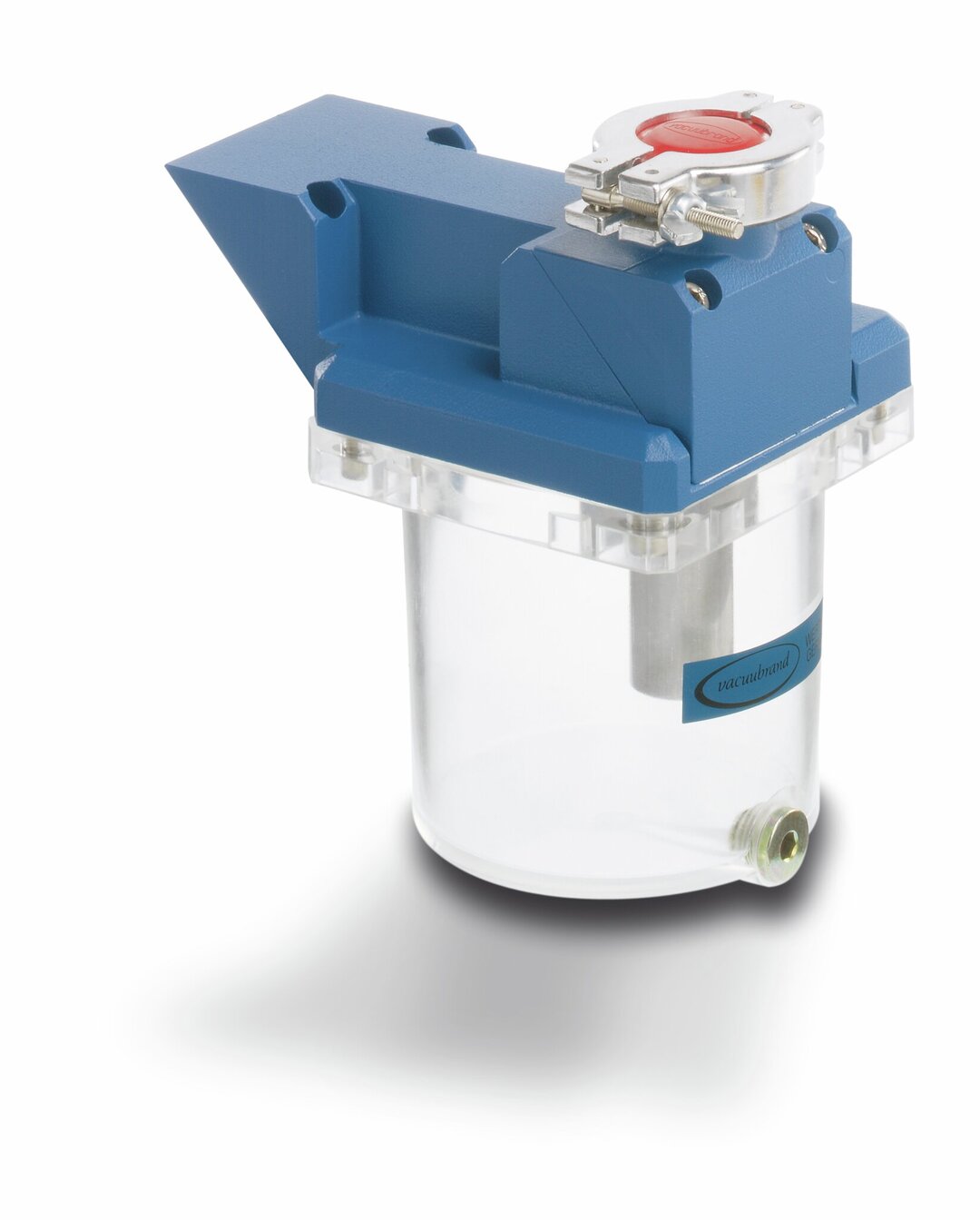

AK R 8/9/16Separator inlet side

Overview

  • direct mounting at the inlet, compact and leak-tight
  • high conductance
  • direct visibility of condensate through the transparent catchpot
  • easy draining of condensate
Cat. No.
20698007
$720.00
- +

Inquire

Separator inlet side in action

Separator AK R 8 / 9 / 16, inlet connection KF NW 25

Separators at the inlet protect pumps from particulates and droplets which may shorten service intervals and even reduce the lifetime and the operating performance of oil-sealed rotary vane pumps. Separators (AK) protect the vacuum pump at the inlet from particles and liquid droplets. Separators catchpot made of plastic (PMP) with good chemical resistance.

für Zoom klicken

Technical data and graphs

Ambient temp., upper limit, in °C 40 °C
Ambient temp., lower limit, in °C 10 °C
Dimension L in mm 163 mm
Dimension B in mm 110 mm
Dimension H in mm 161 mm
Outlet connection small flange KF DN 25
Inlet connection directly mountable
For VACUUBRAND pumps RE 8, RZ 8, RE 9, RZ 9, RE 16, RZ 16
Volume catchpot 500 ml

Downloads

Separator AK R 8 / 9 / 16,inlet connection KF NW 25
AK R 8/9/16 Separator inlet side
Separator AK R 8 / 9 / 16,inlet connection KF NW 25
Brochure PDF 8.9 MB
Multilingual Download
