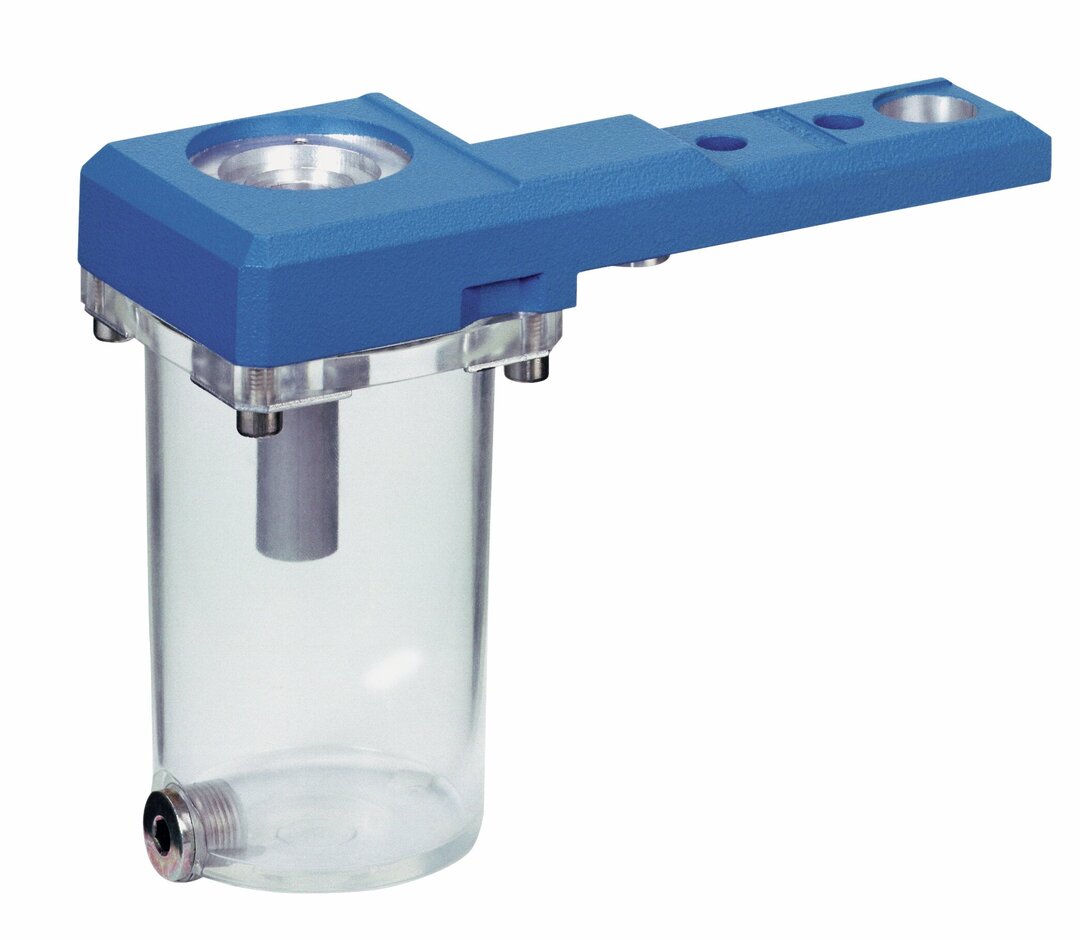

AK for RE/RZ 2/2.5Separator inlet side

Overview

  • direct mounting at the inlet, compact and leak-tight
  • high conductance
  • direct visibility of condensate through the transparent catchpot
  • easy draining of condensate
  • For rotary vane pumps RE 2.5 with article no. 2069715x and RZ 2.5 with article no. 2069812x. For rotary vane pumps RE 2.5 with article no. 2079715x and RZ 2.5 with article no. 2079812x order separator 20698006.
Cat. No.
20698000
Upon Request $570.00
- +

Inquire

Separator inlet side in action

Separator AK for RE/RZ 2 and RE/RZ 2.5

Separators at the inlet protect pumps from particulates and droplets which may shorten service intervals and even reduce the lifetime and the operating performance of oil-sealed rotary vane pumps. Separators (AK) protect the vacuum pump at the inlet from particles and liquid droplets. Separators catchpot made of plastic (PMP) with good chemical resistance.

für Zoom klicken

Technical data and graphs

Ambient temp., upper limit, in °C 40 °C
Ambient temp., lower limit, in °C 10 °C
Dimension L in mm 200 mm
Dimension B in mm 80 mm
Dimension H in mm 159 mm
Outlet connection small flange KF DN 16
Inlet connection directly mountable
For VACUUBRAND pumps RE 2, RZ 2, RE 2.5 (2069715x), RZ 2.5 (2069812x)
Volume catchpot 250 ml
Items supplied Separator AK for RE/RZ 2/2.5.

Downloads

Separator AK for RE/RZ 2 and RE/RZ 2.5
AK for RE/RZ 2/2.5 Separator inlet side
Brochure
Brochure PDF 8.9 MB
Multilingual Download
