MZ 2D NTDiaphragm pump

Overview

  • contamination-free pumping and evacuation
  • high flow rate even near ultimate vacuum
  • good ultimate vacuum
  • whisper quiet and very low vibration
  • exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

Ultimate vacuum

4 mbar

Max. pumping speed 50 Hz

2.3 m3/h

Cat. No.
20732203
Upon Request $999,999.99

Inquire

Diaphragm pump in action

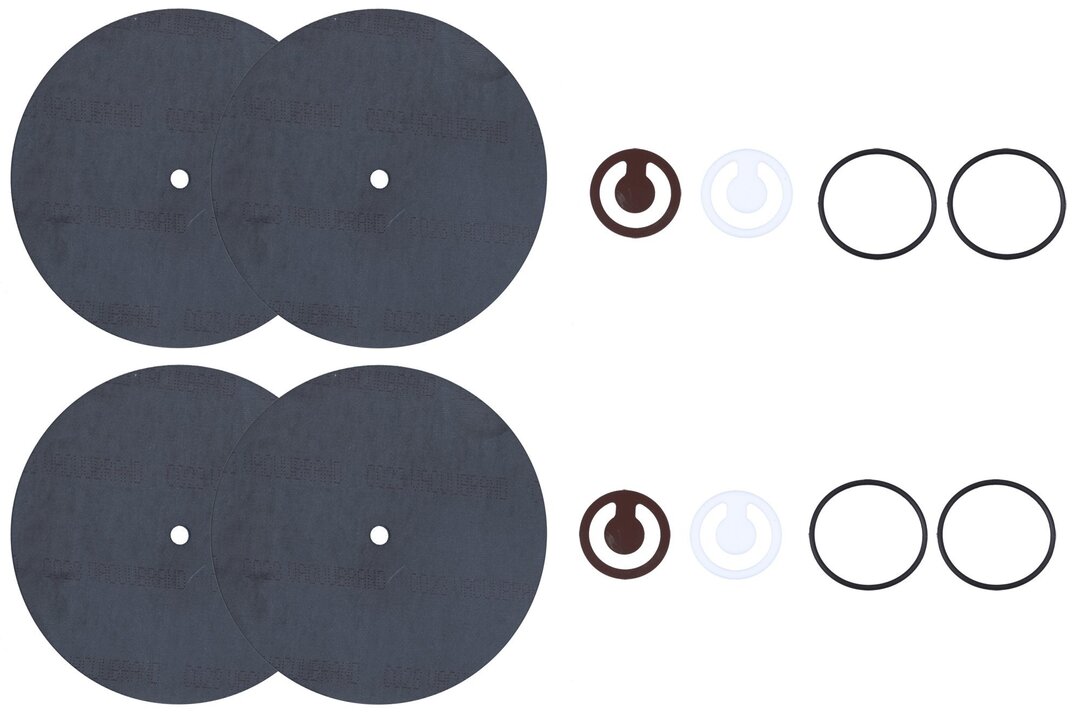

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in these MZ 2 series pumps that are in contact with pumped media are made of aluminum, stainless steel and selected plastics, allowing a wide range of applications for non-corrosive gases. The two-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 4 mbar. The highly flexible fabric-reinforced double diaphragms made of FKM provide high reliability and extended operating life. The NT-series features further improved performance data and compact design. Two-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping at medium vacuum requirements. In contrast to water jet pumps, they do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens and aqueous filtrations. The MZ 2D NT is ideal as backing pump for turbomolecular drag pumps and for pumping down in helium cryostats due to its better ultimate vacuum.

für Zoom klicken

Technical data and graphs

Max. pumping speed 50 Hz 2.3 m3/h Select diagram
Max. pumping speed 60 Hz 1.5 cfm Select diagram
Ultimate vacuum 4 mbar / 3 torr
Number of heads 2
Number of stages 2
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection small flange KF DN 16
Outlet connection Silencer / G1/4"
Rated motor power 0.18 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 246 mm
Dimension B in mm 242 mm
Dimension H in mm 198 mm
Weight 11.4 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 47 dBA
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 100-115 V
Rated mains voltage range 2 120 V
Mains frequency 1 50-60 Hz
Mains frequency 2 60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

Diaphragm pump MZ 2D NT, two stage,certification (NRTL): C/US100-115 V/50-60 V, 120 V/60 Hz,US mains cable
MZ 2D NT Diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 7.2 MB 7.1 MB 7.1 MB 7.1 MB 7.2 MB 20 MB 7.2 MB 7.2 MB 7.8 MB 7.2 MB 7.2 MB 7.2 MB 7.2 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download
