MV 10C NT +EKChemistry vacuum system
Overview
- outstanding chemical resistance and superior vapor tolerance
- reduced process time due to very high flow rates even close to ultimate vacuum
- very low vibration and quiet
- excellent ultimate vacuum even with gas ballast
- on models with EK: excellent environmental friendliness due to efficient solvent recovery
Ultimate vacuum
0.9 mbar
Ultimate vacuum with gas ballast
1.5 mbar
Max. pumping speed 50 Hz
9.5 m3/h
Cat. No.
20744500
Chemistry vacuum system in action

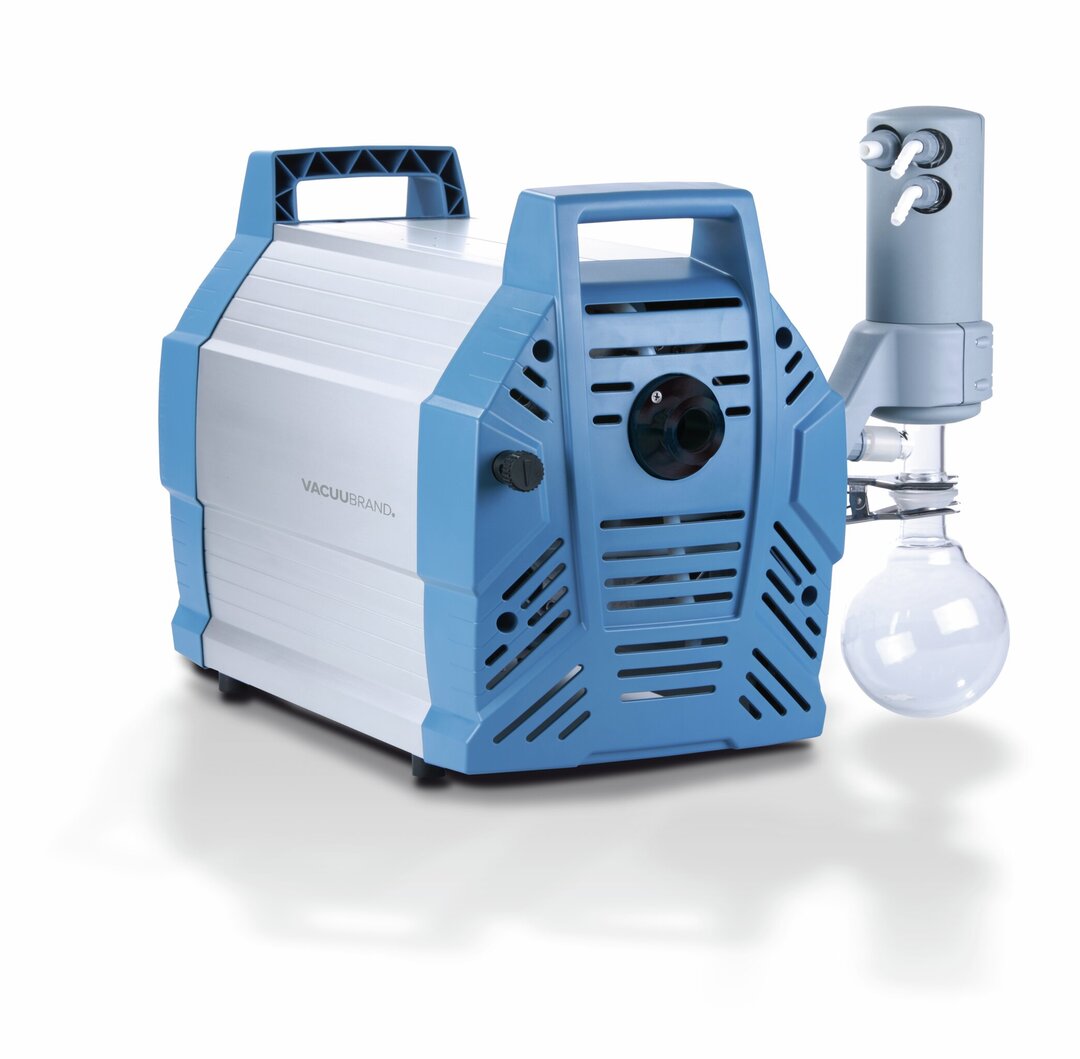

Four-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet highest requirements. The four-stage design of the eight-cylinder pump MV 10C NT provides the advantageous combination of high pumping speed and very low ultimate vacuum of 0.9 mbar in a very compact design. All internal parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. Upgraded with an exhaust waste vapor condenser (EK) the MV 10C NT +EK provides an excellent, environmentally friendly system with efficient solvent recovery. A separator for the inlet (AK) made of glass (with protective coating) against particles and liquid droplets is available as an optional accessory.
für Zoom klicken
Technical data and graphs
| Max. pumping speed 50 Hz | 9.5 m3/h | |
| Max. pumping speed 60 Hz | 5.6 cfm | |
| Ultimate vacuum | 0.9 mbar / 0.68 torr | |
| Ultimate vacuum with gas ballast | 1.5 mbar / 1.1 torr | |
| Number of heads | 8 | |
| Number of stages | 4 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | small flange KF DN 25 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | 0.53 kW | |
| Rated motor speed at 50/60 Hz | 1650 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 528 mm | |
| Dimension B in mm | 387 mm | |
| Dimension H in mm | 395 mm | |
| Weight | 28.3 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 50 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | No | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 200-230 V | |
| Mains frequency 1 | 50-60 Hz |
