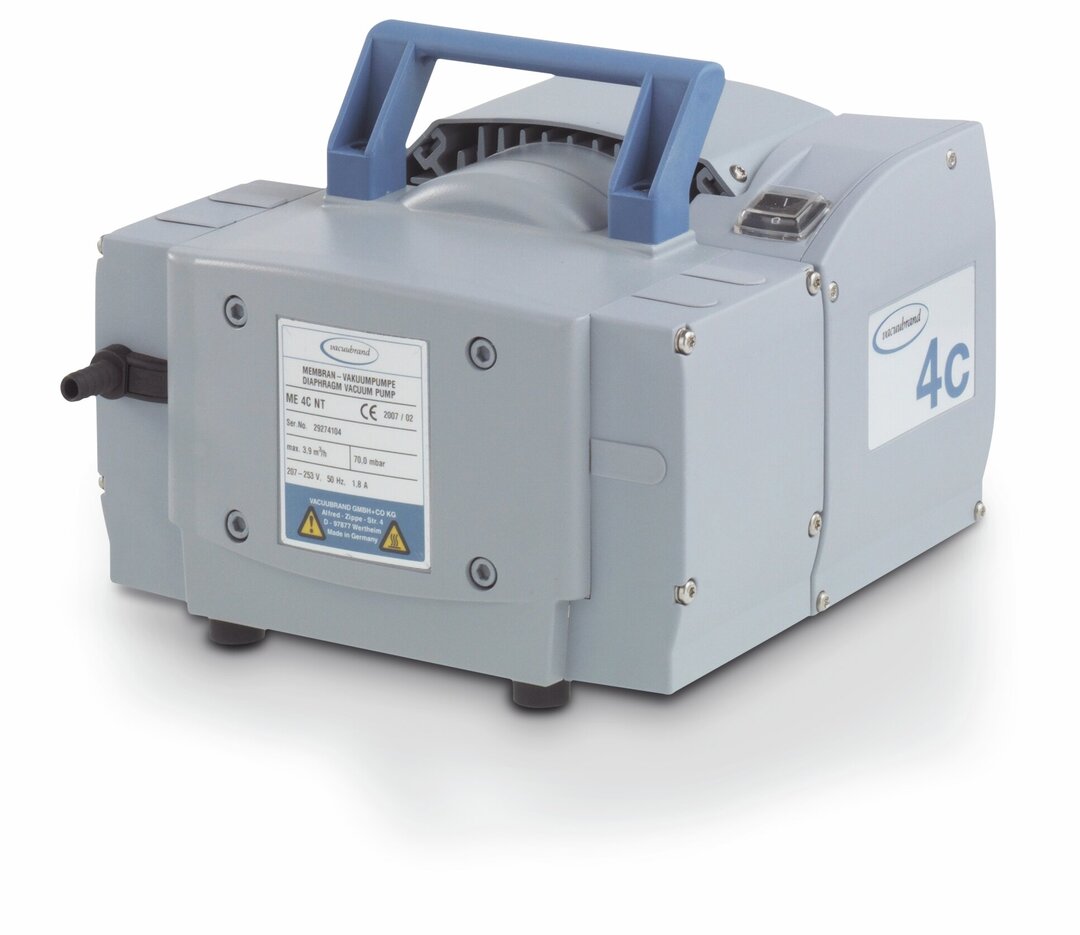

ME 4C NTChemistry diaphragm pump

Overview

  • outstanding chemical resistance
  • high performance even at low vacuum levels
  • whisper quiet
  • low vibration
  • long diaphragm life, maintenance-free drive system

Ultimate vacuum

70 mbar

Max. pumping speed 50 Hz

3.9 m3/h

Cat. No.
20731201
Upon Request $999,999.99

Inquire

Chemistry diaphragm pump in action

Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms increase reliability and extend operating life. The NT-series features further improved performance data, higher tolerance for condensates and simplified maintenance. The ME 4C NT is also available as chemistry vacuum system ME 4C NT +2AK with inlet separator to protect the pump against particles and liquid droplets, plus outlet separator to collect condensate. One-stage chemistry-design diaphragm pumps are an excellent choice for applications with corrosive gases and vapors which do not require very deep vacuum levels. They do not consume water and therefore do not produce any contaminated waste water. Typical applications are filtration as well as concentration of solvents with low boiling points. The ME 4C NT is recommended for processes which require higher flow rates. The chemistry vacuum system ME 4C NT +2AK with inlet separator and condensate catchpot is an excellent choice for rugged applications and for collecting condensates at the exhaust of the pump.

für Zoom klicken

Technical data and graphs

Max. pumping speed 50 Hz 3.9 m3/h Select diagram
Max. pumping speed 60 Hz 2.6 cfm Select diagram
Ultimate vacuum 70 mbar / 52 torr
Number of heads 2
Number of stages 1
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection Hose nozzle DN 8-10 mm
Outlet connection Hose nozzle DN 8-10 mm
Rated motor power 0.18 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 254 mm
Dimension B in mm 243 mm
Dimension H in mm 198 mm
Weight 11.1 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 45 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

Chemistry diaphragm pump ME 4C NT,one stage, certification (NRTL): C/US230 V / 50-60 Hz, CH/CN mains cable
ME 4C NT Chemistry diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 4.3 MB 4.3 MB 4.3 MB 4.3 MB 4.2 MB 4.3 MB 4.3 MB 4.3 MB 4.3 MB 4.3 MB 4.4 MB 4.8 MB 4.3 MB 4.2 MB 4.3 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download Download Download
Brochure
Brochure PDF 2 MB 2 MB
Download Download
