BVC professionalFluid aspiration system
Overview
- with all the advantages of the BVC control
- non-contact sensor for electronic monitoring of the liquid level in the collection bottle
- disinfection routine for the suction tubing for drawing in disinfectant after switching off the pump
- self-closing quick couplings (as accessory to the BVC professional G) for convenient and safe bottle change, e.g., for work with biohazards
- for professional work and a perfect fit for required safety protocols
Cat. No.
20727402

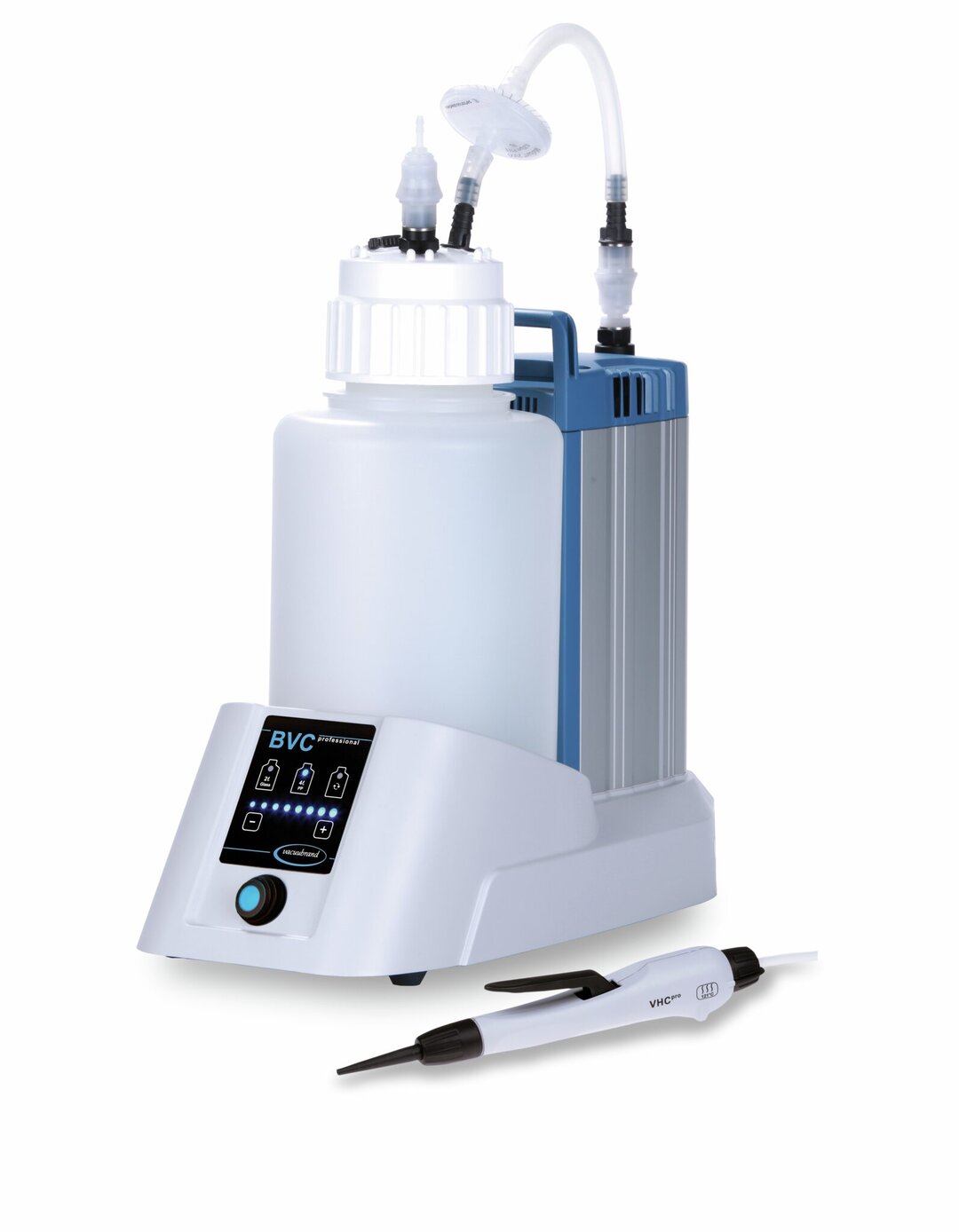

Fluid aspiration system in action

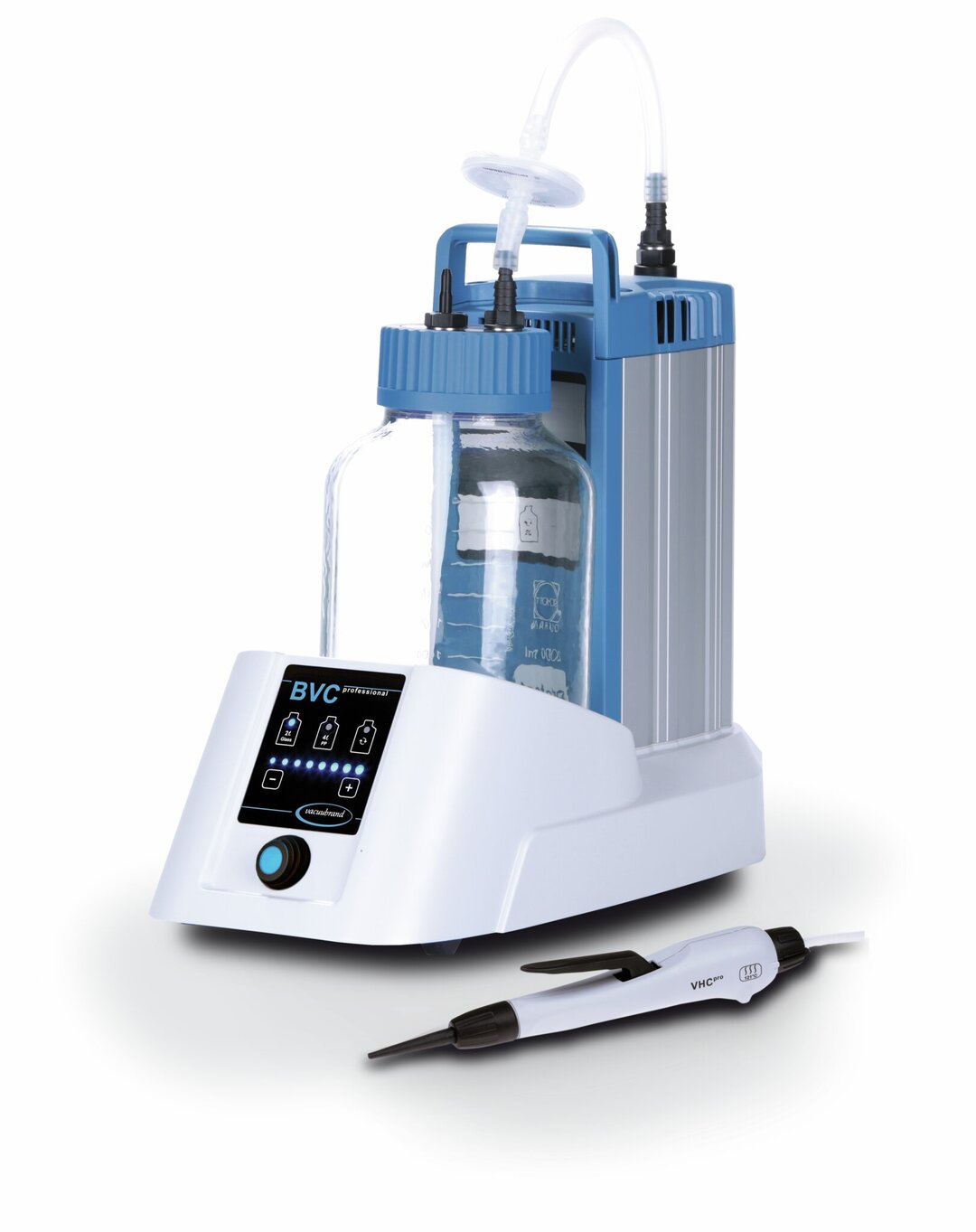

The BioChem-VacuuCenter BVC professional serves for aspiration and disposal of biological fluids, providing outstanding levels of comfort and safety for working with biological and biohazardous materials. A non-contact sensor monitors the liquid level in the collection bottle electronically and prevents overfilling. A disinfection routine allows the suction of disinfectants through aspiration hand set and tubing after switching off the pump, and so supports demanding safety protocols. The BVC professional with 4l PP bottle with self-closing quick couplings minimizes risk in transporting hazardous waste and of contamination in the workplace. The version with coated 2l borosilicate glass bottle allows you to work with aggressive disinfectants like chlorine bleach.
für Zoom klicken
Technical data and graphs
| Max. pumping speed 50 Hz | 0.7 m3/h (Vacuum pump) | |
| Max. pumping speed 60 Hz | 0.5 cfm (Vacuum pump) | |
| Ultimate vacuum | 150 mbar / 112 torr | |
| Vacuum controller | Touchpanel | |
| Control range | 150 - 850 mbar (adjustable) | |

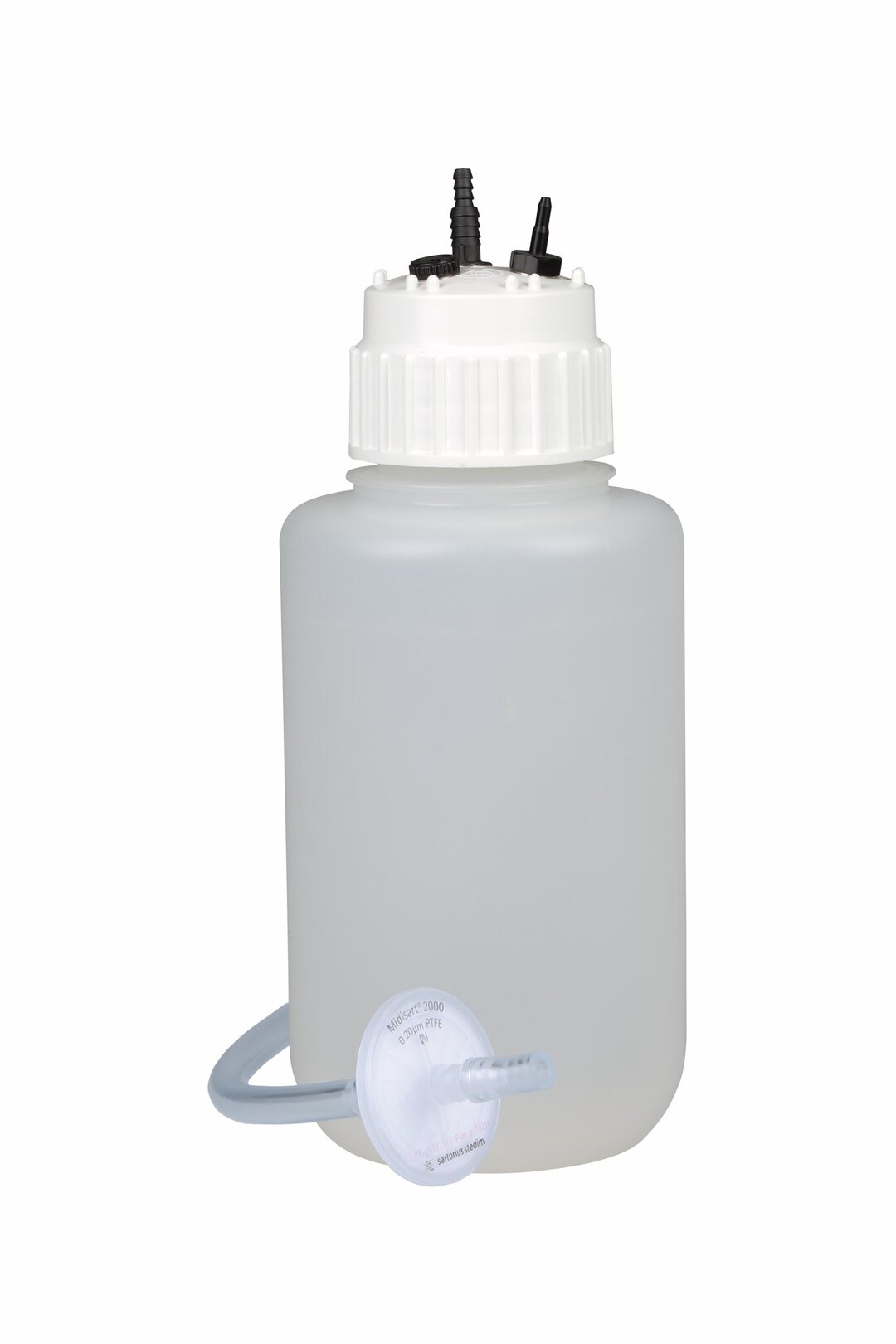

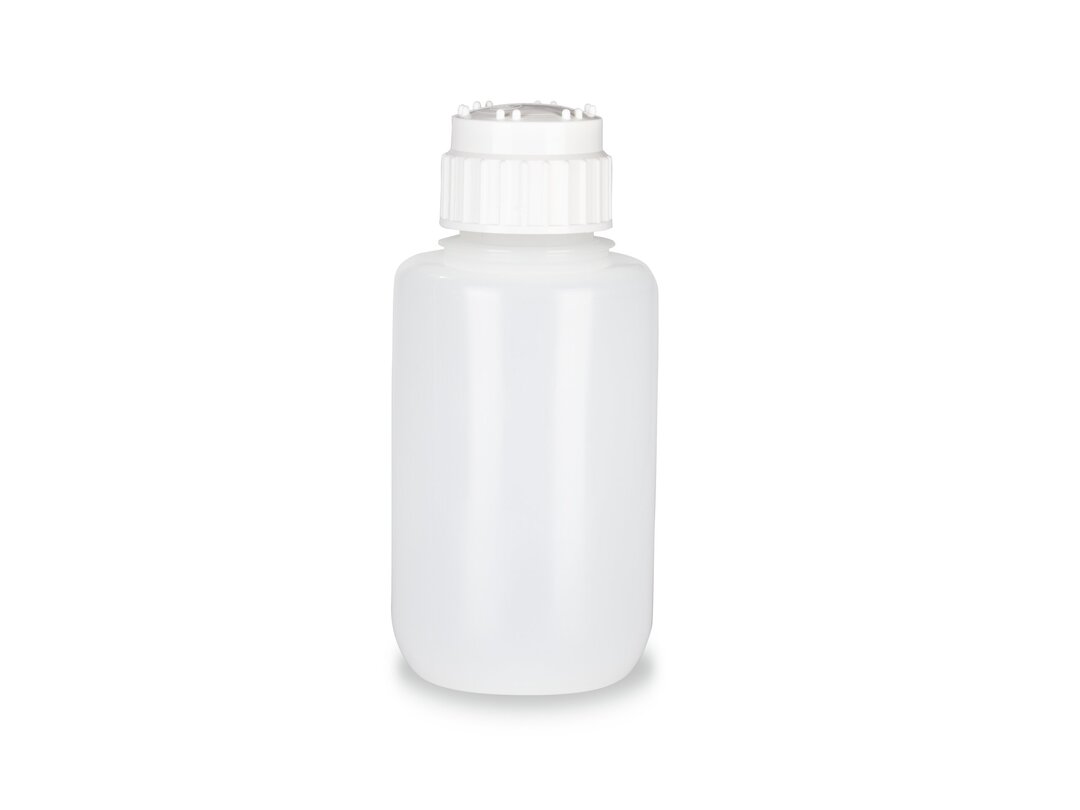

| Collection bottle | 4l Polypropylene | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | Suction controller | |
| Outlet connection | Hose nozzle DN 8 mm / silencer | |
| Rated motor power | 0.04 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Weight | 7.7 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 49 dBA | |
| NRTL certification | No | |

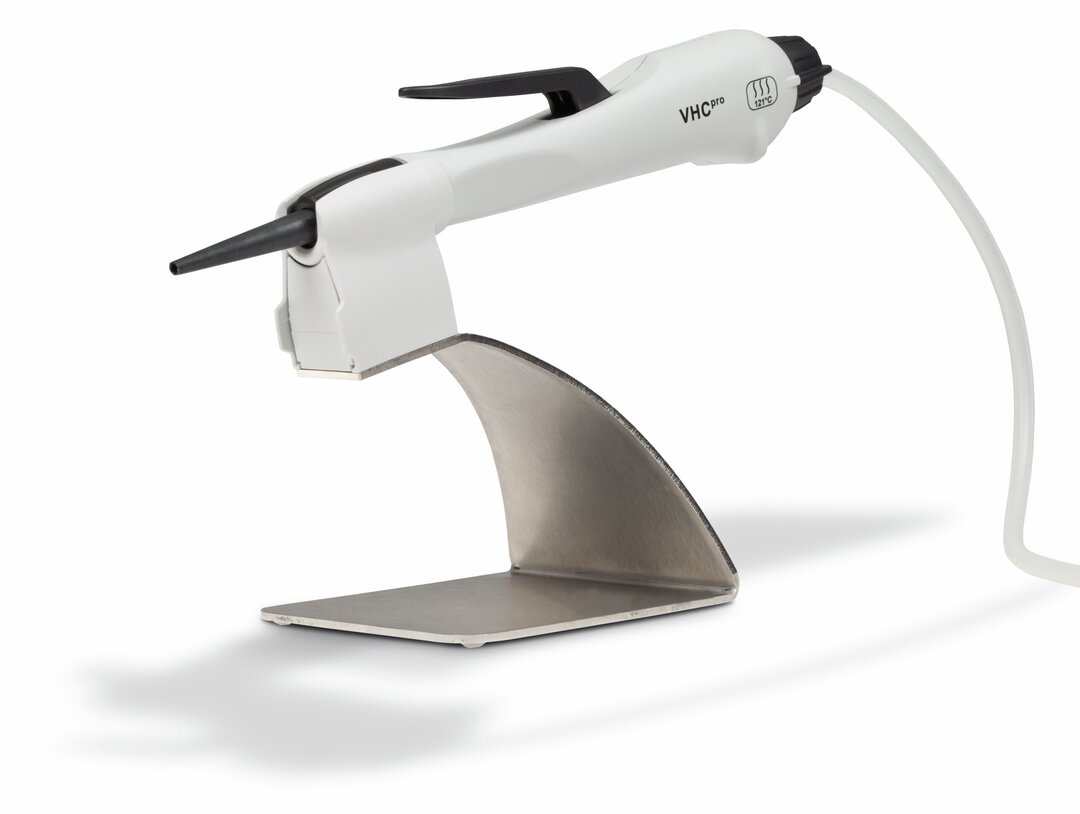

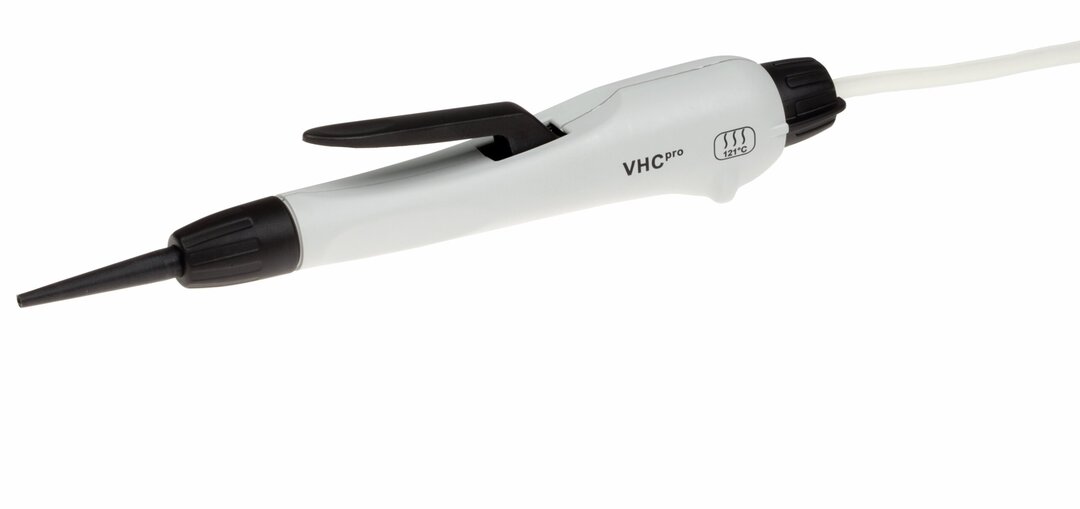

| Items supplied | Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, non-contact liquid level sensor, quick couplings (4l PP version), aspiration hand set VHCpro and protection filter, ready for use with manual. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz |
Downloads
BioChem-VacuuCenter BVC professional,with 4l bottle made of PP,230 V / 50-60 Hz, UK/IN mains cable
