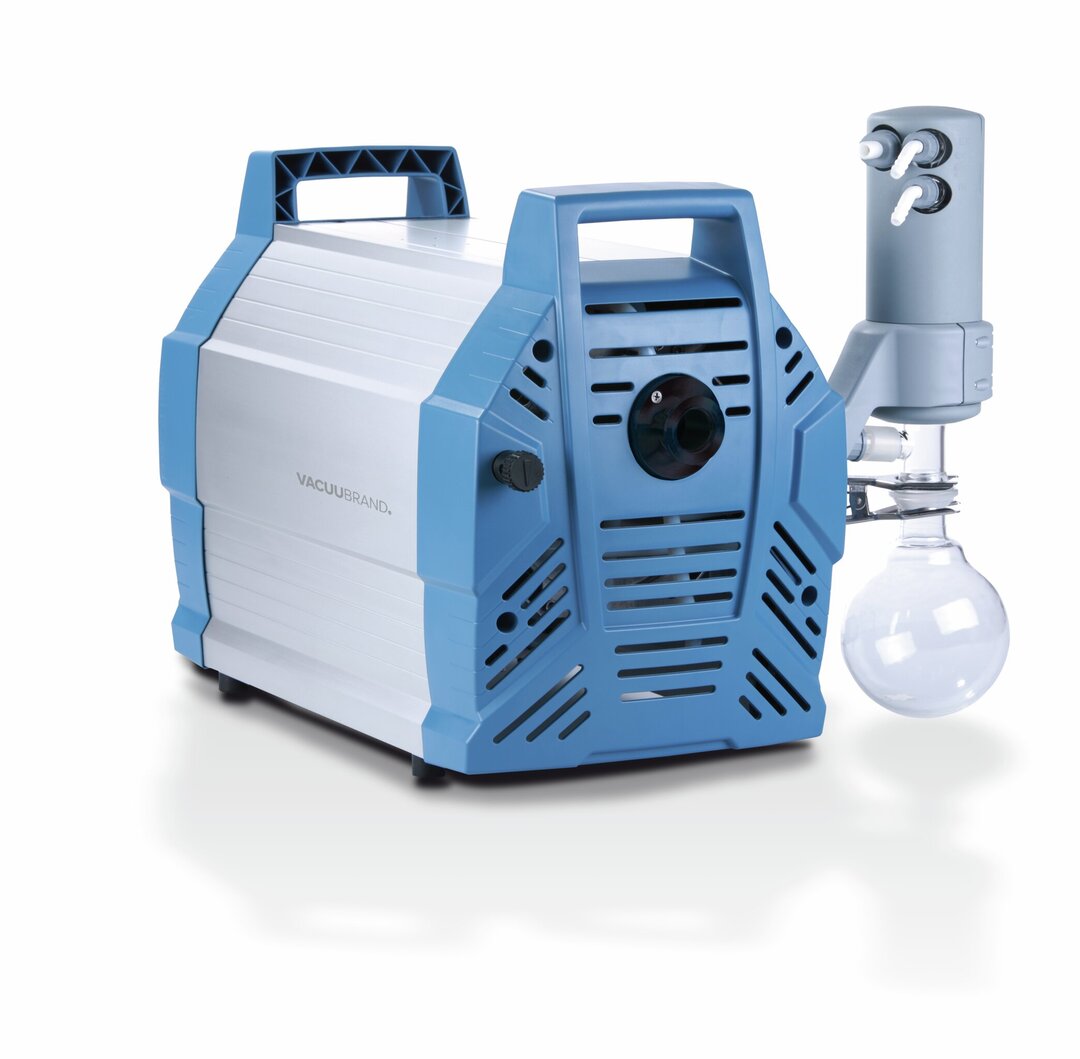

ME 16C NT +EKChemistry vacuum system

Overview

  • outstanding chemical resistance and superior vapor tolerance
  • very high pumping speed even at low vacuum levels
  • compact design
  • whisper quiet and very low vibration
  • excellent environmental friendliness due to efficient solvent recovery

Ultimate vacuum

70 mbar

Ultimate vacuum with gas ballast

100 mbar

Max. pumping speed 50 Hz

16.3 m3/h

Cat. No.
20741503
Upon Request $999,999.99

Inquire

Chemistry vacuum system in action

Chemistry diaphragm pumps of the NT design are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. The eight cylinders pump ME 16C NT provides a particularly high performance together with a compact design. Upgraded with an outlet exhaust vapor condenser (EK) the ME 16C NT +EK provides an environmental friendly system with efficient solvent recovery. Eight-cylinder NT pumps feature quiet operation, smooth and easy to clean surfaces. Large one-stage chemistry-design diaphragm pumps are an excellent choice for pumping large amounts of gases and vapors. They do not consume water and therefore do not produce any contaminated waste water. Typical applications are vacuum ovens and in general evaporations of low boiling solvents. We recommend the ME 16C NT pump especially for processes with very large gas flow at high inlet and process pressures. The ME 16C NT VARIO minimises the danger of superheating and foaming and therefore ensures a constantly high process safety. Evaporation processes can be run fully automatically and with short process times and high sensitivity at the same time.

für Zoom klicken

Technical data and graphs

Max. pumping speed 50 Hz 16.3 m3/h Select diagram
Max. pumping speed 60 Hz 9.6 cfm Select diagram
Ultimate vacuum 70 mbar / 53 torr
Ultimate vacuum with gas ballast 100 mbar / 75 torr
Number of heads 8
Number of stages 1
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection small flange KF DN 25
Outlet connection Hose nozzle DN 8-10 mm
Coolant connection 2 x hose nozzle DN 6-8 mm
Rated motor power 0.53 kW
Rated motor speed at 50/60 Hz 1650 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 528 mm
Dimension B in mm 387 mm
Dimension H in mm 395 mm
Weight 28.4 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 54 dBA
NRTL certification No
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 120 V
Mains frequency 1 50-60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (100 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (100 l volume)
