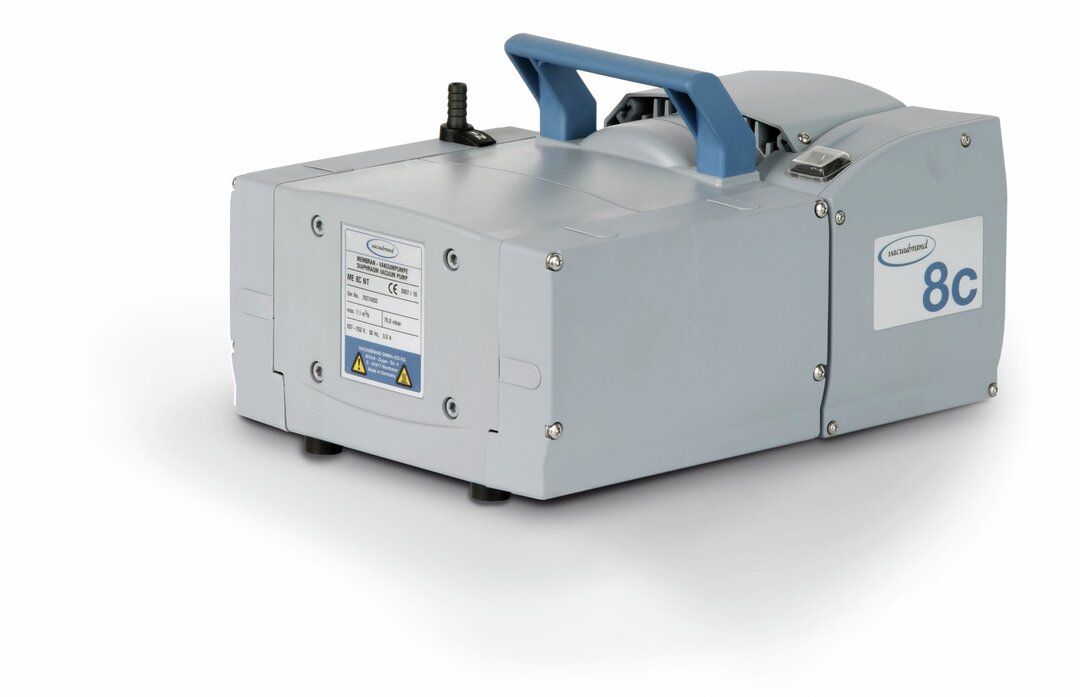

ME 8C NTChemistry diaphragm pump
Overview
- outstanding chemical resistance and superior vapor tolerance
- exceptionally high performance even at low vacuum
- compact design
- whisper quiet and very low vibration
- long diaphragm life, maintenance-free drive system
Ultimate vacuum
70 mbar
Max. pumping speed 50 Hz
7.1 m3/h
Cat. No.
20734202
Chemistry diaphragm pump in action
Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance. Large one-stage chemistry-design diaphragm pumps are an excellent choice for pumping large amounts of gases and vapors. They do not consume water and therefore do not produce any contaminated waste water. Typical applications are degassing of liquids, multiport filtrations e. g. on vacuum networks and in general evaporation of low boiling solvents. We recommend these pumps especially for processes with large gas flow at high process pressures.
für Zoom klicken
Technical data and graphs
| Max. pumping speed 50 Hz | 7.1 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 4.6 cfm | Select diagram |
| Ultimate vacuum | 70 mbar / 52 torr | |
| Number of heads | 4 | |
| Number of stages | 1 | |
| Vacuum controller | 17 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. back pressure (abs.) | 1.1 bar | |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | 0.25 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 328 mm | |
| Dimension B in mm | 243 mm | |
| Dimension H in mm | 198 mm | |
| Weight | 14.3 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | Yes | |
| Items supplied | Pump completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz |
für Zoom klicken
Max. pumping speed 50 Hz
für Zoom klicken
Max. pumping speed 60 Hz
für Zoom klicken
Pump down graph 50 Hz (100 l volume)
für Zoom klicken
Pump down graph 60 Hz (100 l volume)
Downloads
Chemistry diaphragm pump ME 8C NT, one stage,certification (NRTL): C/US,230 V / 50-60 Hz, UK/IN mains cable
