3 x VCL 01VACUU·LAN® Mini-Network

Overview

  • three VACUU·LAN® ports in a snap
  • space saving assembly for the attachment to the wall or your lab frame
  • connect the vacuum pump with vacuum tubing and you are ready to go!
  • easy to upgrade to other manual or electronic VACUU·LAN® ports at any time
  • higher flow-rate pumps can support two VACUU·LAN® Mini-Networks at once
Cat. No.
22614455
Upon Request $1,890.00
- +

Inquire

VACUU·LAN® Mini-Network in action

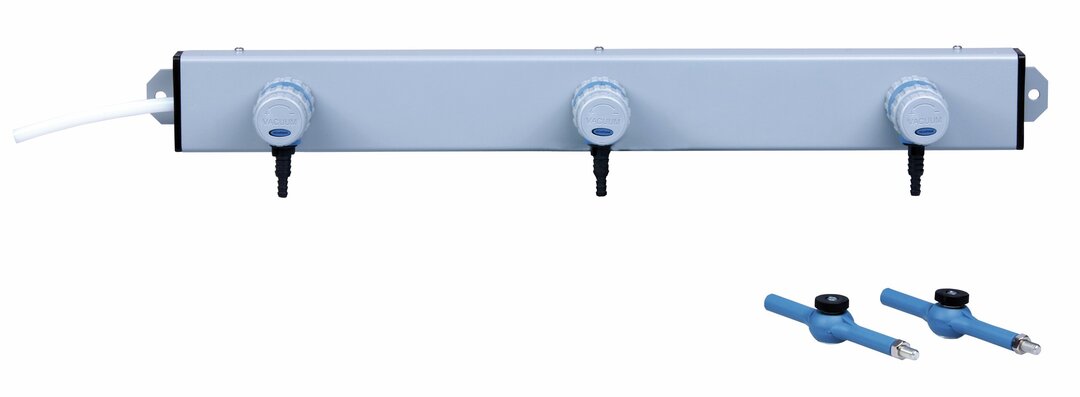

VACUU·LAN® Mini-Network with three modules VCL01 fully assembled

The VACUU·LAN® Mini-Network is a plug and play, three-fold vacuum network that can be attached to a wall or lab frame. Use vacuum tubing to connect the Mini-Network to a new VACUUBRAND diaphragm vacuum pump, or any existing diaphragm vacuum pump to support three applications simultaneously. Specialized VACUU·LAN®ports minimize interference between applications. Each VACUU·LAN® Mini-Network includes manual flow control valves for continuous suction power adjustment. Shut-off valves and electronical control are optionally available.

für Zoom klicken

Technical data and graphs

Items supplied VACUU·LAN® Mini-Network 3 x VCL 01 with PTFE hose DN 10/8mm and hose nozzle DN 8-10mm, with two adjustable support rods.
