Titrette® Bottle-top burettes

Overview

  • Simple: Titration within Class A error limits directly from the bottle
  • Easy: Compact and robust
  • Efficient: Fast filling, precise dispensing

Choose your product:

Nominal volume:
10 ml
25 ml
50 ml
Model:
standard
with RS232 interface
PC interface:
without
RS 232
No products found that match your set filters
Product:
Choose an option
Clear selection

Auf Anfrage

Inquire

Grouped product items
Cat.-No. Nominal volume Accuracy in % (±) Accuracy in µl (±) Coefficient of variation (%) Coefficient of variation (µl) Model PC interface Price per Price
4760141 10 ml 0.1 % 10 µl 0.05 % 5 µl standard without
Upon request

Inquire

4760151 25 ml 0.07 % 18 µl 0.025 % 6 µl standard without
Upon request

Inquire

4760161 50 ml 0.06 % 30 µl 0.02 % 10 µl standard without
Upon request

Inquire

4760241 10 ml 0.1 % 10 µl 0.05 % 5 µl with RS232 interface RS 232
Upon request

Inquire

4760251 25 ml 0.07 % 18 µl 0.025 % 6 µl with RS232 interface RS 232
Upon request

Inquire

4760261 50 ml 0.06 % 30 µl 0.02 % 10 µl with RS232 interface RS 232
Upon request

Inquire

No options of this product are available.

Product Detail

Titrette® is the first bottle-top burette to meet class A error limits for glass burettes. In addition, it stands out for easy titration, a compact design, excellent precision, an exchangeable dosing unit, and an optional PC interface. You can use the Titrette® to titrate quickly and reliably, even with restricted space and independent of available power connections - in the laboratory, in production, or in the field.

In detail:

The Titrette® burette incorporates a simple and effective design for bottle attachment.

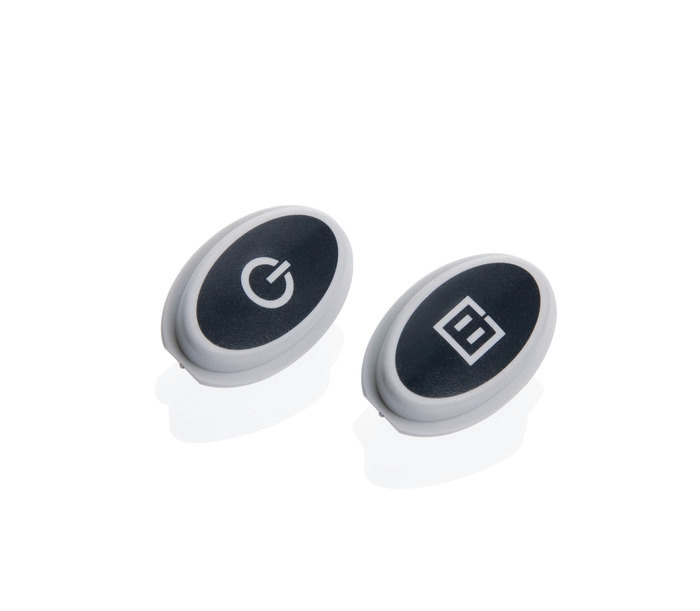

Separate buttons for on/off, pause, and CLEAR to delete the display and select function.

Non-slip hand wheels and a smooth-running precision gear set for fast or drip titration make handling reliable and especially simple.

Limitations of use:

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent

Vapor pressure up to 500 mbar

Viscosity up to 500 mm² /s

Altitude: max. 3,000 m above sea level

Relative humidity: 20 % to 90%

Items supplied

Titrette® bottle-top burette, for threaded bottles GL 45, DE-M marking, supplied with performance certificate, telescoping filling tube (170 - 330 mm), recirculation tube, 2 batteries (AAA/UM4/LR03), 3 PP bottle adapters (GL 32, S 40, NS 29/32), 2 amber colored light shield inspection windows. Additionally included with interface: 2 m interface cable (Sub-D plug connector, 9-pin), one CD (driver software and open RS232 communication protocol). The CD also includes an example application in XLS-file format, as well as a special operating manual.

für Zoom klicken

Videos

Youtube preview image
Youtube preview image
Grouped product items
Cat.-No. Nominal volume Accuracy in % (±) Accuracy in µl (±) Coefficient of variation (%) Coefficient of variation (µl) Model PC interface Price per Price
4760141 10 ml 0.1 % 10 µl 0.05 % 5 µl standard without
Upon request

Inquire

4760151 25 ml 0.07 % 18 µl 0.025 % 6 µl standard without
Upon request

Inquire

4760161 50 ml 0.06 % 30 µl 0.02 % 10 µl standard without
Upon request

Inquire

4760241 10 ml 0.1 % 10 µl 0.05 % 5 µl with RS232 interface RS 232
Upon request

Inquire

4760251 25 ml 0.07 % 18 µl 0.025 % 6 µl with RS232 interface RS 232
Upon request

Inquire

4760261 50 ml 0.06 % 30 µl 0.02 % 10 µl with RS232 interface RS 232
Upon request

Inquire

No options of this product are available.

Product Detail

Titrette® is the first bottle-top burette to meet class A error limits for glass burettes. In addition, it stands out for easy titration, a compact design, excellent precision, an exchangeable dosing unit, and an optional PC interface. You can use the Titrette® to titrate quickly and reliably, even with restricted space and independent of available power connections - in the laboratory, in production, or in the field.

In detail:

The Titrette® burette incorporates a simple and effective design for bottle attachment.

Separate buttons for on/off, pause, and CLEAR to delete the display and select function.

Non-slip hand wheels and a smooth-running precision gear set for fast or drip titration make handling reliable and especially simple.

Limitations of use:

Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent

Vapor pressure up to 500 mbar

Viscosity up to 500 mm² /s

Altitude: max. 3,000 m above sea level

Relative humidity: 20 % to 90%

Items supplied

Titrette® bottle-top burette, for threaded bottles GL 45, DE-M marking, supplied with performance certificate, telescoping filling tube (170 - 330 mm), recirculation tube, 2 batteries (AAA/UM4/LR03), 3 PP bottle adapters (GL 32, S 40, NS 29/32), 2 amber colored light shield inspection windows. Additionally included with interface: 2 m interface cable (Sub-D plug connector, 9-pin), one CD (driver software and open RS232 communication protocol). The CD also includes an example application in XLS-file format, as well as a special operating manual.

für Zoom klicken

Videos

Youtube preview image
Youtube preview image

The large, easy-grip hand wheels are conveniently easy to turn. With the optimized gear ratio, you can fill the instrument quickly and still titrate drop-wise very slowly and sensitively. The drop size for the 10 ml instrument is approx. 20 μl, and for the 25 and 50 ml instruments approx. 30 μl.

The innovation for working within the Class A error limits according to DIN EN ISO 385: The Titrette® has an innovatine new measuring system, which matches the Class A accuracy of glass burettes.

No switching is needed to change between filling and titration. The dispenser automatically detects whether you are filling or titrating by the direction of hand wheel rotation.
