VACUU·BUS®Digital-I/O-Module VACUU·BUS®
Overview
- digital input of control signals via a galvanically isolated input
- digital output of status signals via a potential-free semiconductor relay
- fault indicator from and to the vacuum controller
- configurable as remote (Start/Stop) module
- configurable as process-stop module with optional function for opening a relay or valve at process end
Cat. No.
20636228

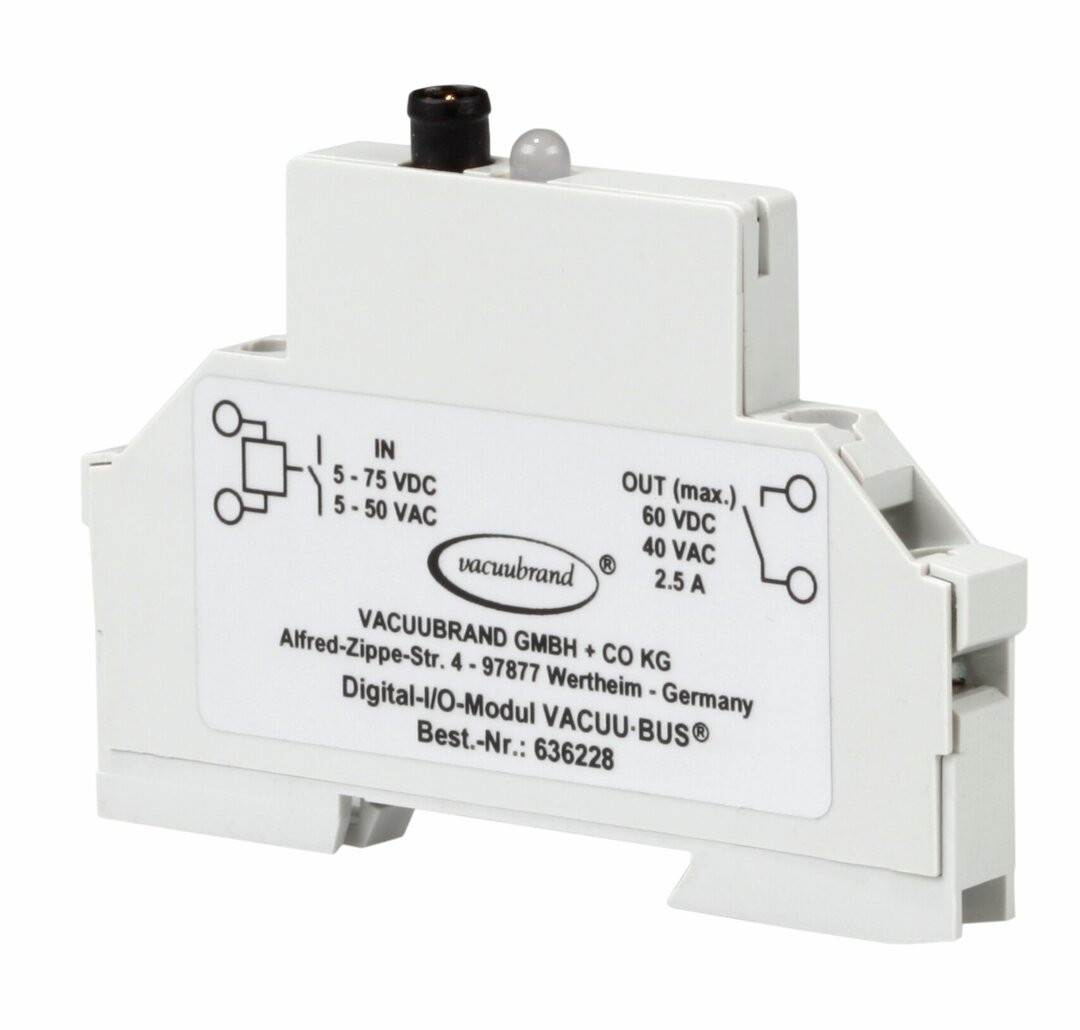

Digital-I/O-Module VACUU·BUS® in action
Digital I/O interface module VACUU·BUS, with 2 m VACUU·BUS cable
The Digital-I/O-Module is a digital interface for VACUU·BUS® compatible vacuum gauges and controllers. There is a galvanically isolated input gate and a potential-free semiconductor relay for output switching. By default the Digital-I/O-Module is configured as bidirectional fault indicator module to communicate malfunctions in a vacuum system to the process control system, or in case of external malfunction to interrupt the process. When configured as Start/Stop module a process can be started and stopped from a PLC. In addition the Digital-I/O-Module can be configured for control of valves not compatible with VACUU·BUS®. In combination with the vacuum gauge DCP 3000 set points can be defined for the control of, e.g., high vacuum pumping units, load locks, etc.
für Zoom klicken
Technical data and graphs
| Items supplied | Digital-I/O-Module VACUU·BUS® complete with cable VACUU·BUS® 2m. |
