Bottle-top dispensers Dispensette® S, analog-adjustable, DE-M
Overview
- Simple: Wide range of applications for organic solvents, acids, alkalis and saline solutions.
- Easy: Minimum operating forces, maximum comfort.
- Efficient: Reliable in challenging continuous operation and with aggressive media.
Choose your product:
Volume range:
0.1 ml - 1 ml
0.2 ml - 2 ml
0.5 ml - 5 ml
1 ml - 10 ml
2.5 ml - 25 ml
5 ml - 50 ml
10 ml - 100 ml
Recirculation valve:
without
with
| Cat.-No. | Volume range | Recirculation valve | Accuracy in % (±) | Accuracy in µl (±) | Coefficient of variation (%) | Coefficient of variation (µl) | Subdivision | Adapter for bottle thread | Filling tube length |
|---|---|---|---|---|---|---|---|---|---|
| 4600100 | 0.1 ml - 1 ml | without | 0.5 % | 5 µl | 0.1 % | 1 µl | 0.02 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600101 | 0.1 ml - 1 ml | with | 0.5 % | 5 µl | 0.1 % | 1 µl | 0.02 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600120 | 0.2 ml - 2 ml | without | 0.5 % | 10 µl | 0.1 % | 2 µl | 0.05 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600121 | 0.2 ml - 2 ml | with | 0.5 % | 10 µl | 0.1 % | 2 µl | 0.05 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600130 | 0.5 ml - 5 ml | without | 0.5 % | 25 µl | 0.1 % | 5 µl | 0.1 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600131 | 0.5 ml - 5 ml | with | 0.5 % | 25 µl | 0.1 % | 5 µl | 0.1 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600140 | 1 ml - 10 ml | without | 0.5 % | 50 µl | 0.1 % | 10 µl | 0.2 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600141 | 1 ml - 10 ml | with | 0.5 % | 50 µl | 0.1 % | 10 µl | 0.2 ml | GL 24-25, GL28/S 28, GL 32-33, GL 38, S 40 | 125-240 mm |
| 4600150 | 2.5 ml - 25 ml | without | 0.5 % | 125 µl | 0.1 % | 25 µl | 0.5 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| 4600151 | 2.5 ml - 25 ml | with | 0.5 % | 125 µl | 0.1 % | 25 µl | 0.5 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| 4600160 | 5 ml - 50 ml | without | 0.5 % | 250 µl | 0.1 % | 50 µl | 1 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| 4600161 | 5 ml - 50 ml | with | 0.5 % | 250 µl | 0.1 % | 50 µl | 1 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| 4600170 | 10 ml - 100 ml | without | 0.5 % | 500 µl | 0.1 % | 100 µl | 1 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| 4600171 | 10 ml - 100 ml | with | 0.5 % | 500 µl | 0.1 % | 100 µl | 1 ml | GL 32-33, GL 38, S 40 | 170-330 mm |
| Price per | Price | |||
|---|---|---|---|---|
Product Detail
Whether you are dispensing solvents, acids, alkalis or saline solutions – the Dispensette® S bottle-top dispenser makes it easy, safe and efficient.
With both the Dispensette® S and Dispensette® S Organic, you will always have the right dispenser at hand for a wide range of media. For efficient volume adjustment, you can choose between digital and analog adjustment, or fixed volume. Do you dispense long series, sterile applications or moisture-sensitive media? With numerous accessory options, the Dispensette® S also offers efficient solutions for special applications.
Dispensette® S (red color-code): Ideal for dispensing aggressive reagents, including concentrated bases and acids such as H3PO4, H2SO4 (except e.g., HCl, HNO3 und HF), saline solutions, as well as many organic solvents.
Analog-adjustable Model: Rapid and safe volume setting with new internal scalloped track. Simple calibration adjustment with a supplied tool.
Limitations of use:
Operating temperature from +15 °C to +40 °C (from 59 °F to 104 °F) of instrument and reagent
Vapor pressure up to max. 600 mbar. Aspirate slowly above 300 mbar, in order to prevent the liquid from boiling
Kinematic viscosity up to 500 mm² /s (dynamic viscosity [mPas] = kinematic viscosity [mm² /s] x density [g/cm³)
Density up to 2.2 g/cm³
Items supplied

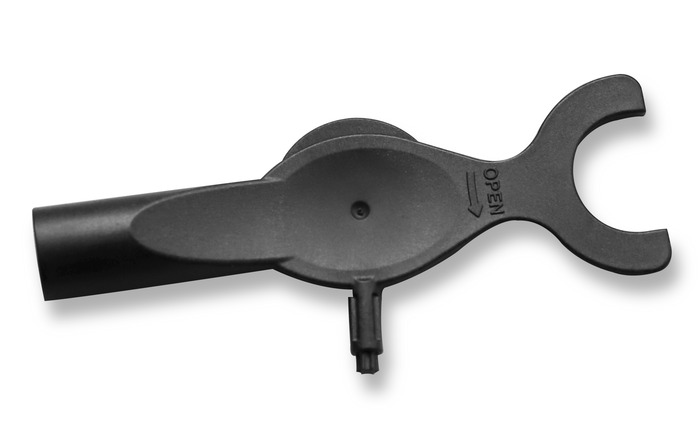

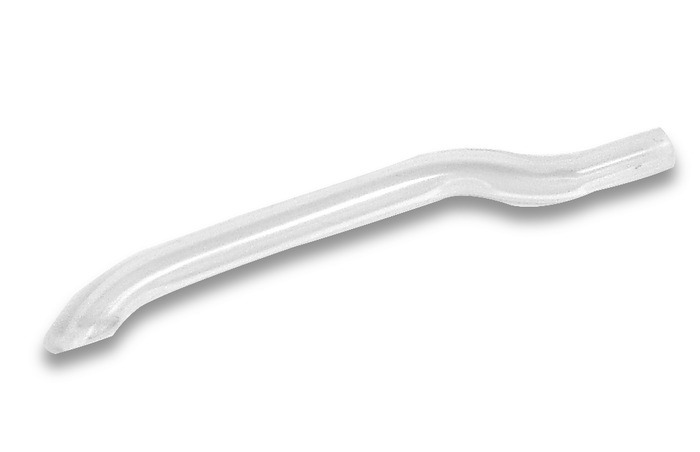

Dispensette® S bottle-top dispenser, for threaded bottles GL 45, DE-M marking, with performance certificate, telescoping filling tube, recirculation valve and recirculation tube (optional), mounting tool and adapters of polypropylene (Nominal volume: 1, 2, 5, 10ml: GL 24-25, GL 28/S28, GL 32-33, GL38, S40 / Nominal volume 25, 50, 100ml: GL 32-33, GL38, S40)
für Zoom klicken
