Drum extraction system Dispensette®
Choose your product:
Types:

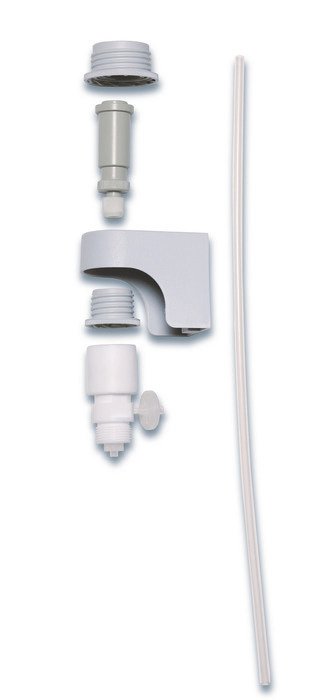

Extraction system, standard supply (without Dispensette®)
Filling tube, outer diam. 7.6 mm, length 10 m
Support rod connector for wall mount
Filling tube, outer diam. 6,9 mm, length 1 m
Thread adapter, outer thread 2'', inner thread R 3/4"
Table/rack clamp for wall mount
Thread adapter, outer thread 3/4", GL 32
Thread adapter, inner thread 3/4", GL 32
Material:
FEP
stainless steel
steel, galvanized
PTFE
| Cat.-No. | Types | Material |
|---|---|---|
| 704261 | Extraction system, standard supply (without Dispensette®) | |
| 704267 | Filling tube, outer diam. 7.6 mm, length 10 m | FEP |
| 704268 | Support rod connector for wall mount | stainless steel |
| 704269 | Filling tube, outer diam. 6,9 mm, length 1 m | FEP |
| 704270 | Thread adapter, outer thread 2'', inner thread R 3/4" | stainless steel |
| 704272 | Table/rack clamp for wall mount | steel, galvanized |
| 704281 | Thread adapter, outer thread 3/4", GL 32 | PTFE |
| 704282 | Thread adapter, inner thread 3/4", GL 32 | PTFE |
| Price per | Price | |||
|---|---|---|---|---|
Product Detail
Dispense accurate volumes directly from drums and bulk refills.
The Dispensette® can be mounted on a wall, a ring stand or on lab furniture.
A filter in the drum adapter minimizes risk of contaminating highpurity reagents when air is drawn in for pressure compensation after dispensing.
A quick-release connector with integrated valves allows quick changing of the bulk container.
The remote dispensing system allows storage of the drum up to 10 meters (30 feet) away from the Dispensette®.
The max. delivery height is approximately 1.2 m.
Operating Exclusions: Never use the remote dispensing system: 1. with recirculation valve. It has to be removed before use! 2. for pressurized vessels 3. for liquids attacking borosilicate glass, Al2O3-ceramic, PFA, ETFE, FEP or PTFE 4. for Peroxide (due to catalytic reaction) 5. for carbon disulfide (CS2), due to risk of explosion!
für Zoom klicken
