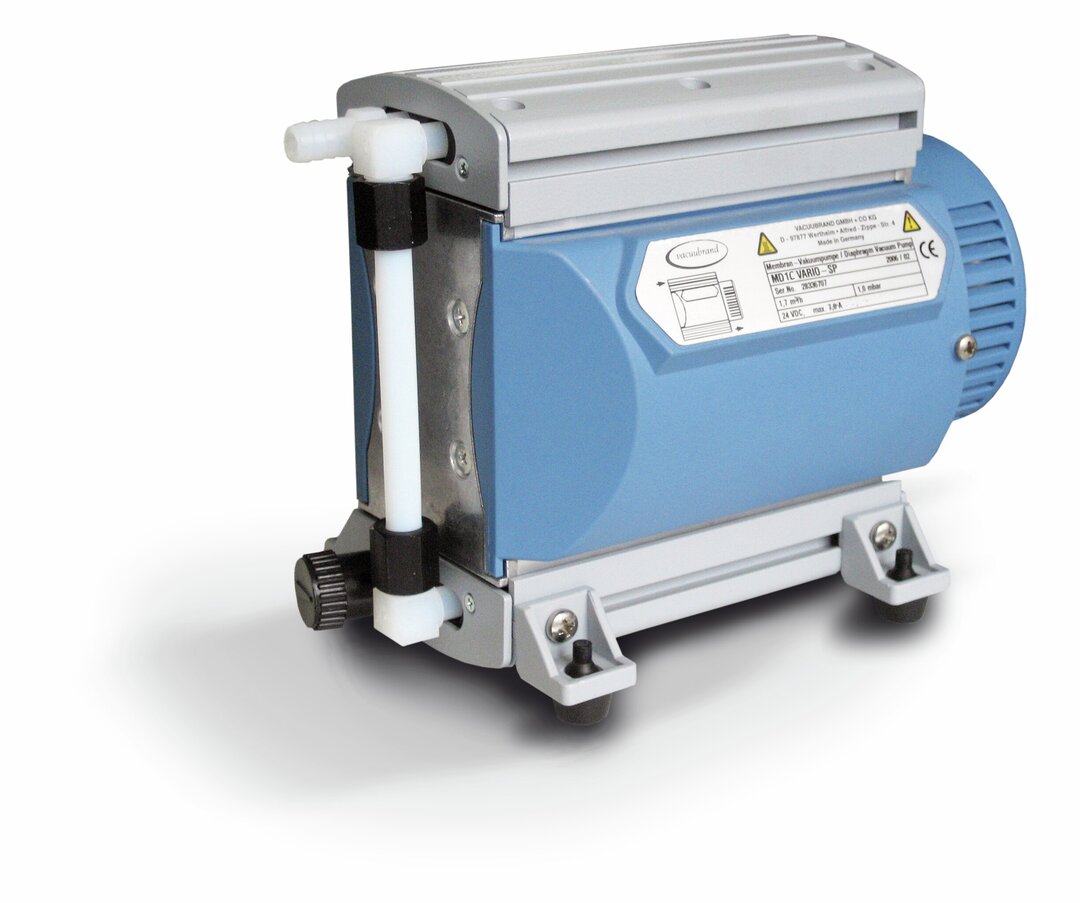

MD 1C VARIO-SPVARIO®-SP chemistry diaphragm pump
Overview
- contamination-free pumping and evacuation
- high flow rate even near ultimate vacuum
- VARIO®-SP = variable speed: Fast pump down at high motor speed, maintain vacuum with reduced motor speed
- very powerful and extremely compact; whisper quiet and ultra-low vibration, especially at low speed
- MD 1C VARIO-SP in chemistry design, with gas ballast valve and outstanding chemical resistance and superior vapor tolerance
Ultimate vacuum
2 mbar
Ultimate vacuum with gas ballast
4 mbar
Max. pumping speed 50 Hz
1.8 m3/h
Cat. No.
20696110
VARIO®-SP chemistry diaphragm pump in action
The three-stage MD 1 VARIO-SP diaphragm pump with its variable speed drive system attains significantly higher pumping speed and a better ultimate vacuum than the corresponding fixed speed pump. The brushless 24V DC motor (maintenance-free) enables easy integration of the pump into other equipment and operation independent of line voltage. The pump is particularly silent and vibration-free, and has an outstanding lifetime of its diaphragms and valves. For exceptional chemical resistance of the pump´s internal flowpath it is also available as a chemistry design version (MD 1C VARIO-SP). The MD 1 VARIO-SP is an excellent choice for continuous, contamination-free evacuation and pumping of non-aggressive gases. The motor speed is either fixed or can be adjusted externally via electronic control signals for adaption to process requirements. For chemistry applications all major parts of the chemistry design pump MD 1C VARIO-SP in contact with pumped media are made of chemically resistant fluoroplastics. Both pump types are extremely compact and mountable in any position and are therefore the ideal built-in or system pump. Customized versions of these pump types are available on request.
für Zoom klicken
Technical data and graphs
| Max. pumping speed 50 Hz | 1.8 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.0 cfm | |
| Ultimate vacuum | 2 mbar / 1.5 torr | |
| Ultimate vacuum with gas ballast | 4 mbar / 3 torr | |
| Number of heads | 4 | |
| Number of stages | 3 | |
| Vacuum controller | 17 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8 mm | |
| Rated motor power | 0.064 kW | |
| Minimum motor speed VARIO in min-1 | 200 min-1 | |
| Maximum motor speed VARIO in min-1 | 2400 min-1 | |
| Protection class IEC 60529 | IP 20 | |
| Dimension L in mm | 235 mm | |
| Dimension B in mm | 143 mm | |
| Dimension H in mm | 175 mm | |
| Weight | 4.2 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 37 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | Yes | |
| Items supplied | Pump completely mounted, ready for use, with 2 m cable without plug and with manual. | |
| Rated mains voltage range 1 | 24 V | |
| Mains frequency 1 | DC |
