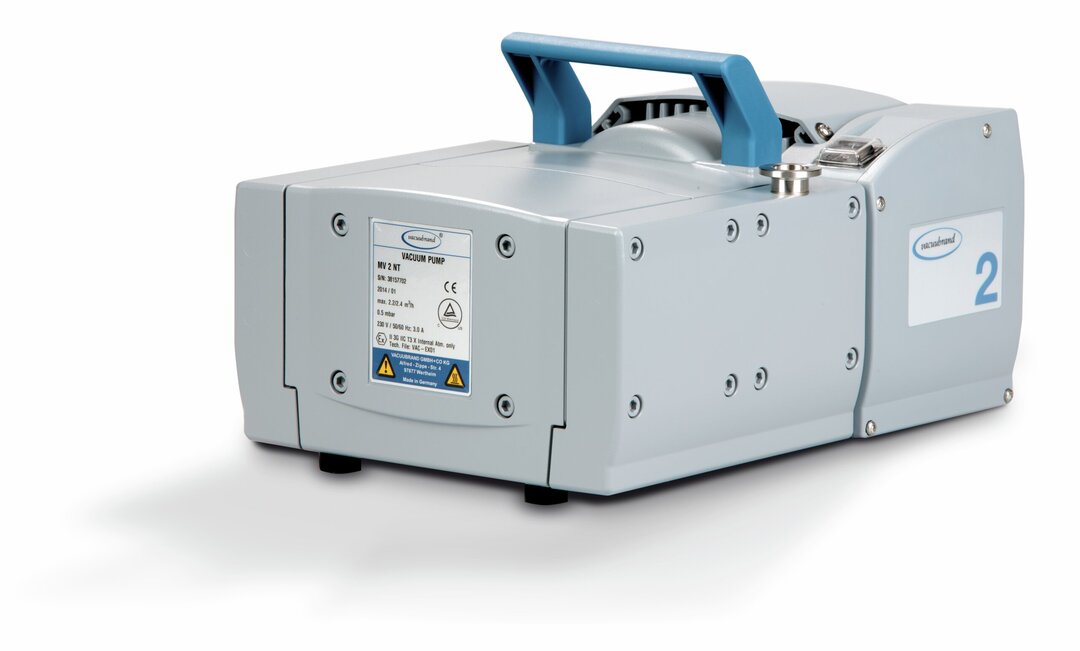

MV 2 NTDiaphragm pump

Overview

  • contamination-free pumping and evacuation
  • high flow rate even near ultimate vacuum
  • outstanding ultimate vacuum
  • whisper quiet and ultra-low vibration
  • exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

Ultimate vacuum

0.5 mbar

Max. pumping speed 50 Hz

2.2 m3/h

* Required Field(s)

From Upon Request $6,060.00
- +

Inquire

Diaphragm pump in action

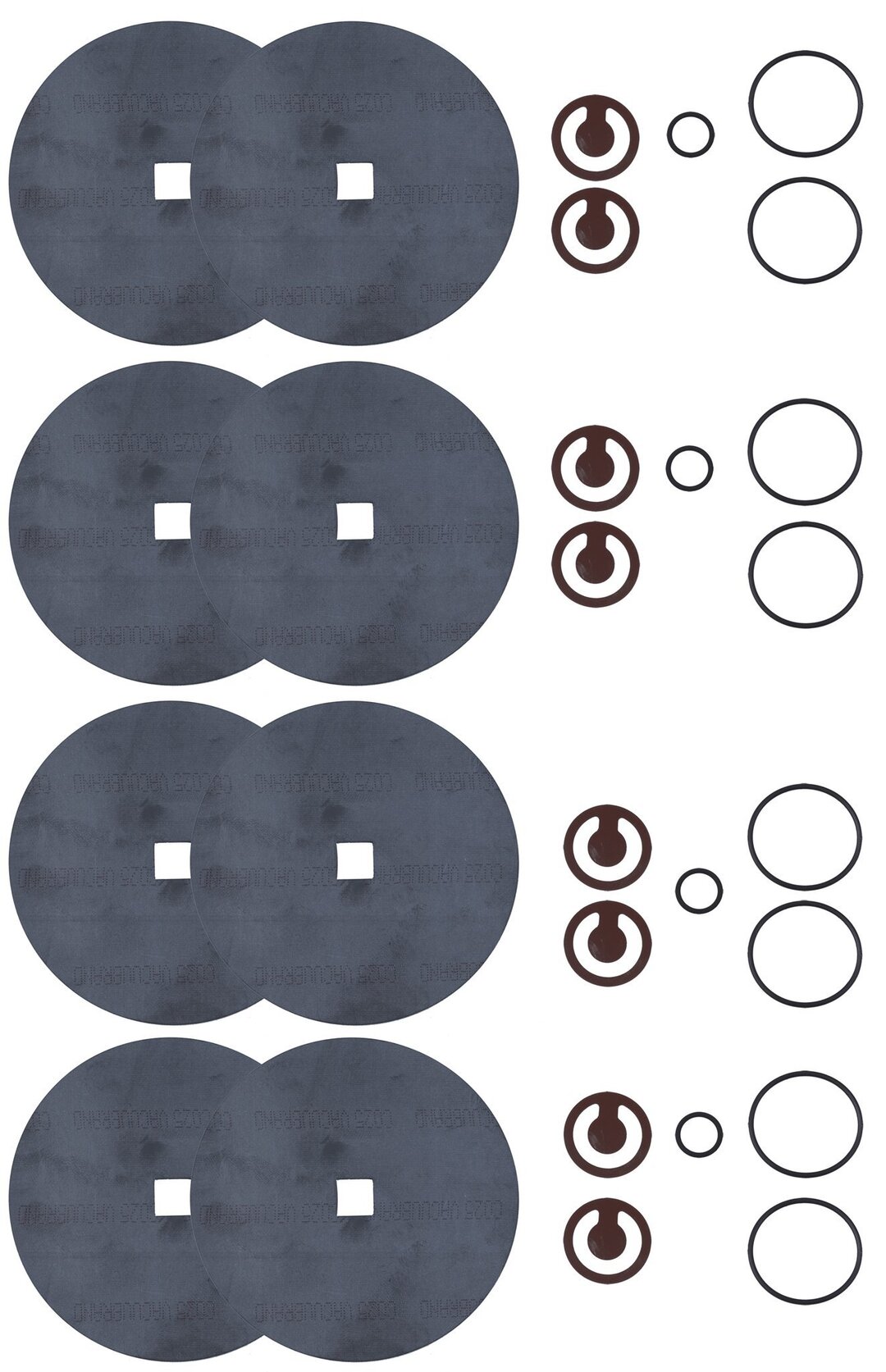

Four-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases when the need is to reach fractional millibar ultimate vacuums. All parts in contact with pumped vapors or gases are made of aluminum, stainless steel and carefully selected plastics suitable for a wide range of non-corrosive applications. The new NT-series pumps provide whisper-quiet and ultra-low-vibration operation, high leak-tightness and improved vacuum. The highly flexible, fabric-reinforced double diaphragm made of FKM offers extended operating life. Four-stage diaphragm pumps are an excellent choice for continuous, contamination-free evacuation and pumping of non-aggressive gases under the very high vacuum demands of applications in physics and analytics. Due to the outstanding ultimate vacuum, these pumps are often used as alternative to rotary vane pumps. A typical application is the use as backing pump for turbomolecular drag pumps.

für Zoom klicken

Technical data and graphs

Max. pumping speed 50 Hz 2.2 m3/h Select diagram
Max. pumping speed 60 Hz 1.4 cfm Select diagram
Ultimate vacuum 0.5 mbar / 0.4 torr
Number of heads 4
Number of stages 4
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Max. back pressure (abs.) 1.1 bar
Inlet connection small flange KF DN 16
Outlet connection Silencer / G1/4"
Rated motor power 0.25 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Dimension L in mm 328 mm
Dimension B in mm 239 mm
Dimension H in mm 198 mm
Weight 16.4 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) 50 dBA
ATEX conformity II 3/- G Ex h IIC T3 Gc X Internal Atm. only
NRTL certification Yes
Items supplied Pump completely mounted, ready for use, with manual.
Rated mains voltage range 1 230 V
Mains frequency 1 50-60 Hz

vac_pumpingspeedm3 für Zoom klicken

Max. pumping speed 50 Hz

vac_pumpingspeedcfm für Zoom klicken

Max. pumping speed 60 Hz

vac_pumpingcurve50 für Zoom klicken

Pump down graph 50 Hz (10 l volume)

vac_pumpingcurve60 für Zoom klicken

Pump down graph 60 Hz (10 l volume)

Downloads

MV 2 NT Diaphragm pump
MV 2 NT Diaphragm pump
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum pump
Manual PDF 7.2 MB 7.1 MB 7.1 MB 7.1 MB 7.2 MB 20 MB 7.2 MB 7.2 MB 7.8 MB 7.2 MB 7.2 MB 7.2 MB 7.2 MB
Download Download Download Download Download Download Download Download Download Download Download Download Download
Technical data sheet
Data sheet PDF 2.5 MB 2.5 MB 2.5 MB 2.5 MB 2.6 MB
Download Download Download Download Download
