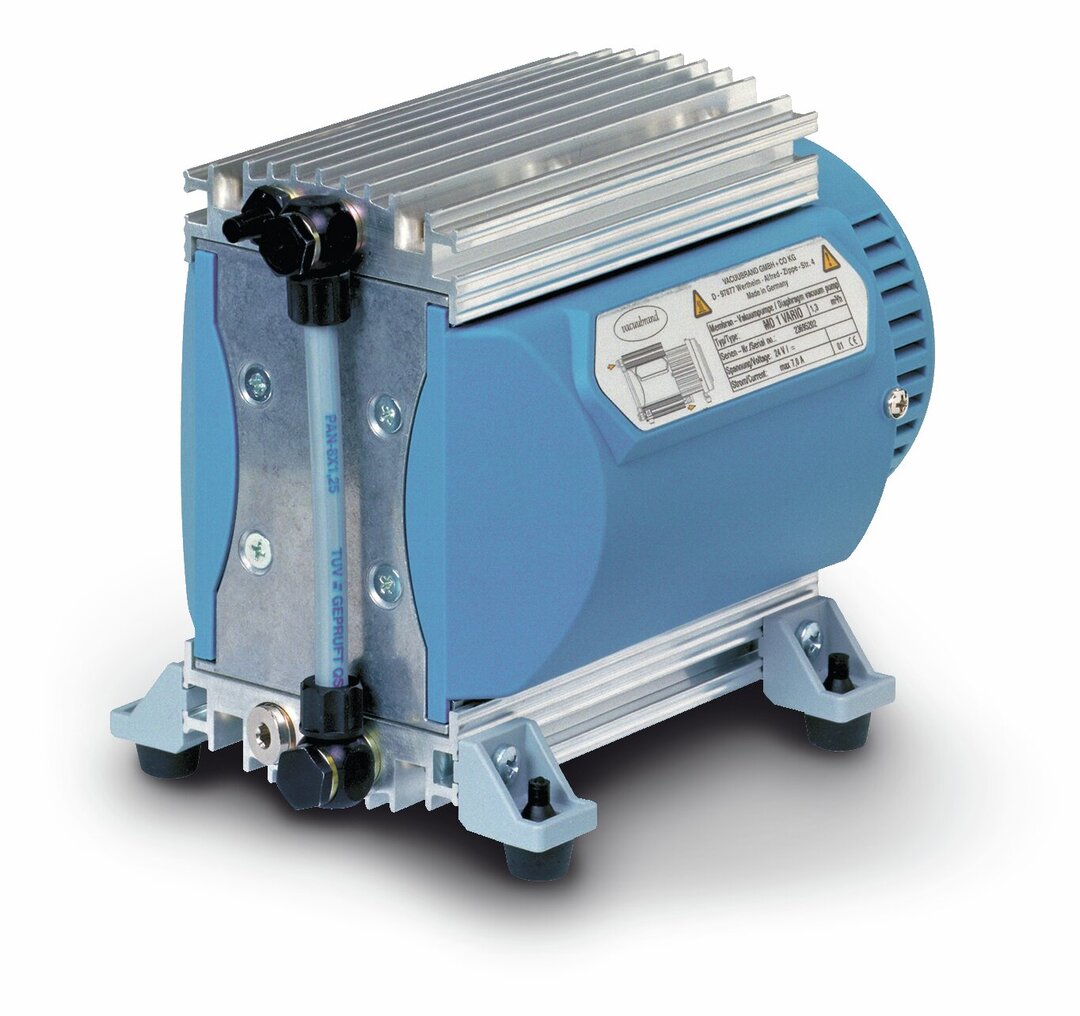

MD 1 VARIO-SPVARIO®-SP diaphragm pump
Overview
- contamination-free pumping and evacuation
- high flow rate even near ultimate vacuum
- variable speed: Fast pump down at high motor speed, with reduced speeds to maintain vacuum
- very powerful and extremely compact; whisper quiet and ultra-low vibration, especially at low speed
- customized versions available
Ultimate vacuum
1 mbar
Max. pumping speed 50 Hz
1.8 m3/h
Cat. No.
20696101
VARIO®-SP diaphragm pump in action
The three-stage MD 1 VARIO-SP diaphragm pump, with its variable speed drive system, attains significantly higher pumping speed and a better ultimate vacuum than the corresponding fixed speed pump. The brushless 24V DC motor (maintenance-free) enables easy integration of the pump into other equipment, and operation independent of line voltage. The pump is extraordinarily silent and vibration-free, with an extended lifetime for its diaphragms. The MD 1 VARIO-SP is an excellent choice for continuous, contamination-free evacuation and pumping of non-aggressive gases. The motor speed is either fixed or can be adjusted externally via electronic control signals for adaptation to process requirements. The pump is extremely compact and mountable in any position and therefore the ideal built-in or system pump. Customized versions of these pump types are available on request.
für Zoom klicken
Technical data and graphs
| Max. pumping speed 50 Hz | 1.8 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.06 cfm | |
| Ultimate vacuum | 1 mbar / 0.75 torr | |
| Number of heads | 4 | |
| Number of stages | 3 | |
| Lower ambient temperature (operation) | 10 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Inlet connection | Hose nozzle DN 6 mm | |
| Outlet connection | Silencer / G1/8" | |
| Rated motor power | 0.064 kW | |
| Minimum motor speed VARIO in min-1 | 200 min-1 | |
| Maximum motor speed VARIO in min-1 | 2400 min-1 | |
| Protection class IEC 60529 | IP 20 | |
| Dimension L in mm | 223 mm | |
| Dimension B in mm | 143 mm | |
| Dimension H in mm | 163 mm | |
| Weight | 4.1 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 37 dBA | |
| ATEX conformity | II 3/- G Ex h IIC T3 Gc X Internal Atm. only | |
| NRTL certification | Yes | |
| Items supplied | Pump completely mounted, ready for use, with 2 m cable without plug and with manual | |
| Rated mains voltage range 1 | 24 V | |
| Mains frequency 1 | DC |
