VV 6CSolenoid-operated valves
Overview
- high operating cycles
- significantly better long term tightness even after long operating time
- easy to clean
- versatile connection alternatives via small flange or hose nozzle
- low leakage rate
Cat. No.
20674091
Solenoid-operated valves in action

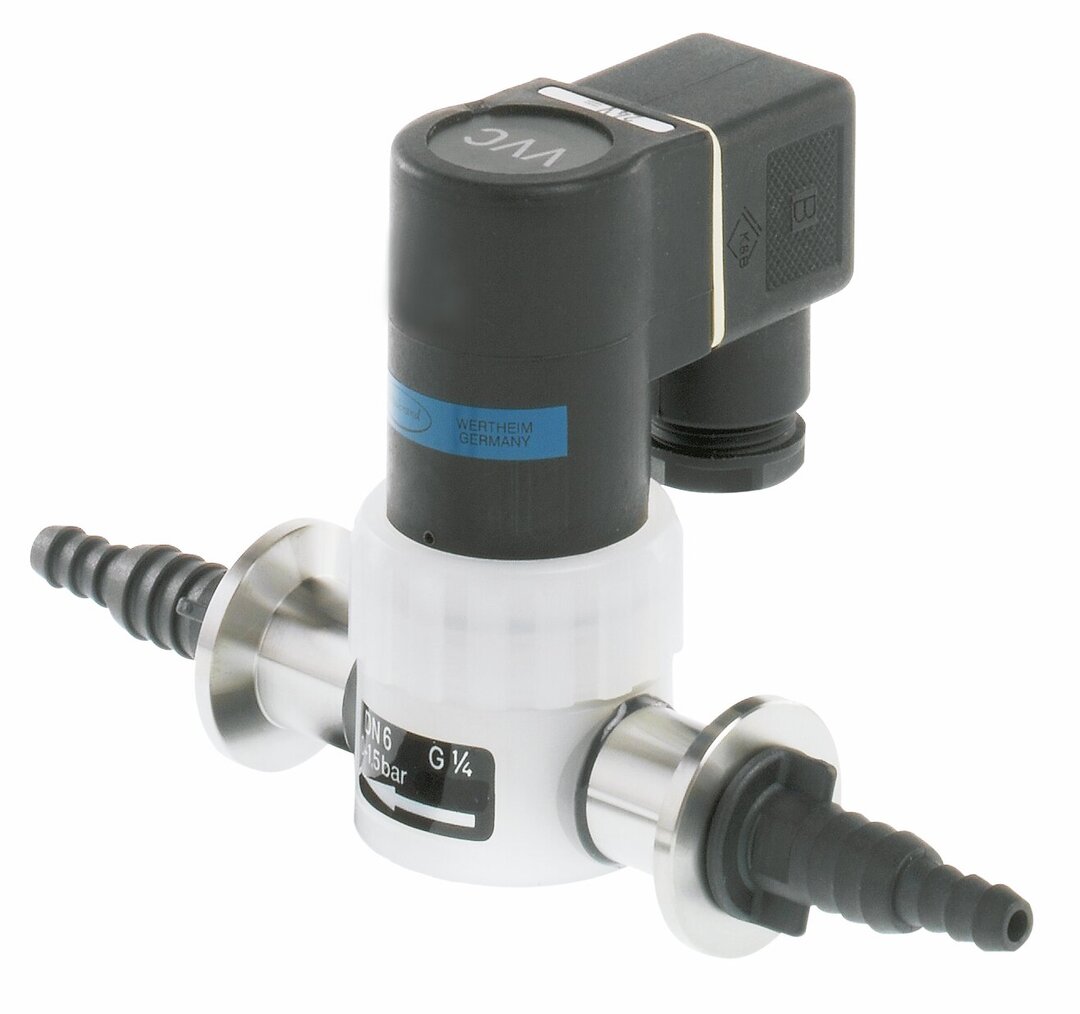

In-line isolation valve VV 6C EM 24 V PVDF/fluoroplastics, automatic
These straight-through valves with electromagnetic (solenoid) drive are used for operating cycles with short intervals and, therefore, are often used as vacuum control valves. The straightforward design provides a valve with low leakage rate. The valves in version VV C are made of materials with excellent chemical resistance. The valve sealing of the VV-B 6C is made of a special fluoroelastomer with better form stability than common PTFE, much higher chemical resistance than FKM and excellent long-term leak tightness characteristics.
für Zoom klicken
Technical data and graphs
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (operation) | 0 °C | |
| Max. gas temperature | 100 °C | |
| Flange connection | Small flange KF DN 16 or hose nozzle DN 6/10 mm | |
| Operation | Solenoid 24 V/= | |
| Leakage rate | 1 x 10-2 mbar l/s | |
| Max. switching frequency | 50 pro Min. | |
| Fitting length between flanges | 80 mm |
