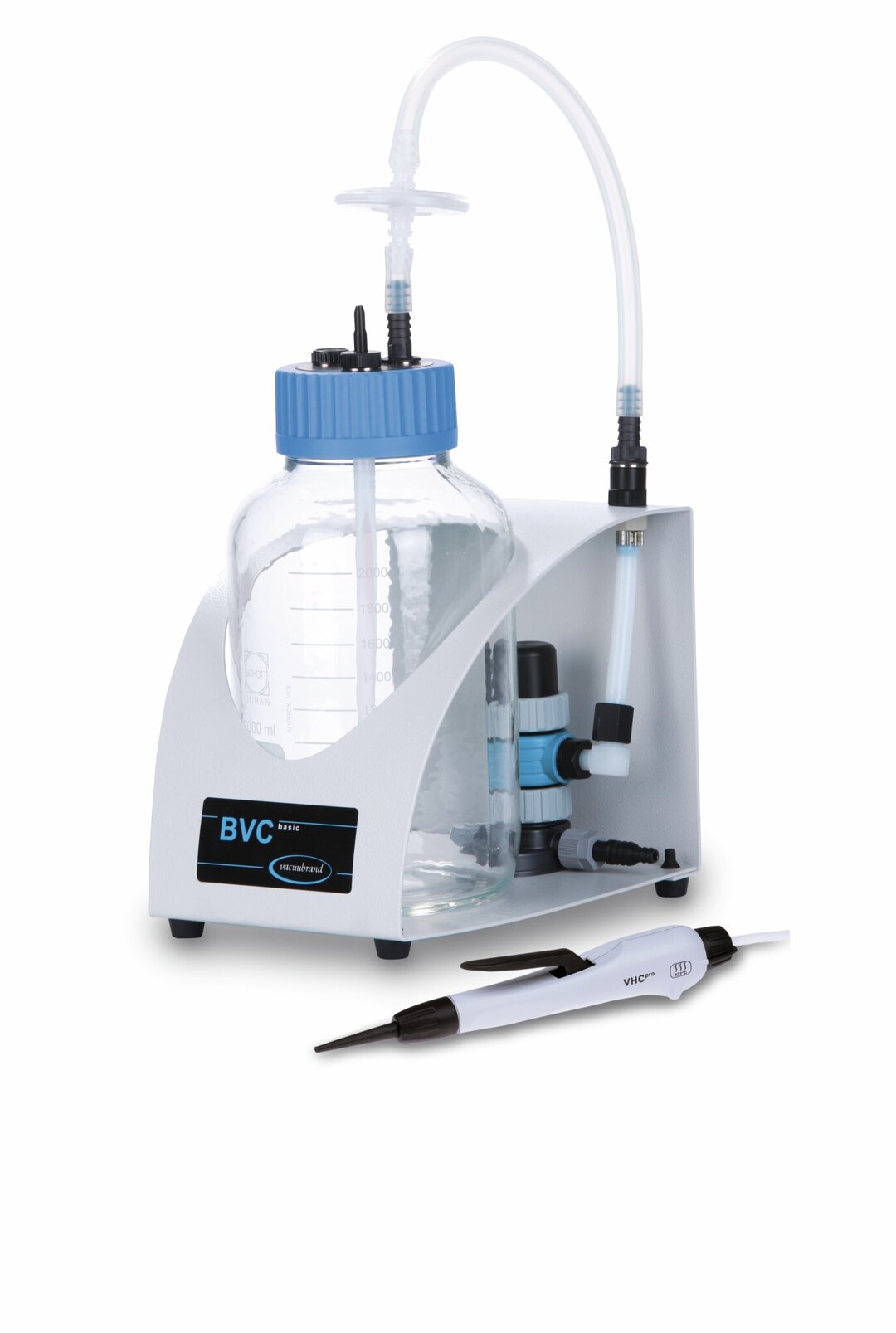

BVC basic GFluid aspiration system

Overview

  • mechanical vacuum regulator and integrated check valve to provide optimum working vacuum and minimize the vapor load on the vacuum network
  • stable base and electricity-free operation for convenience
  • autoclavable collection bottle designed to reduce aero­sol and foam formation; autoclavable quick-couplings available as accessory
  • aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube - no contamination of handle by aspirated media
  • hydrophobic 0.2 µm sterilizable filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle
Cat. No.
20727100
Upon Request $1,560.00
- +

Inquire

Fluid aspiration system in action

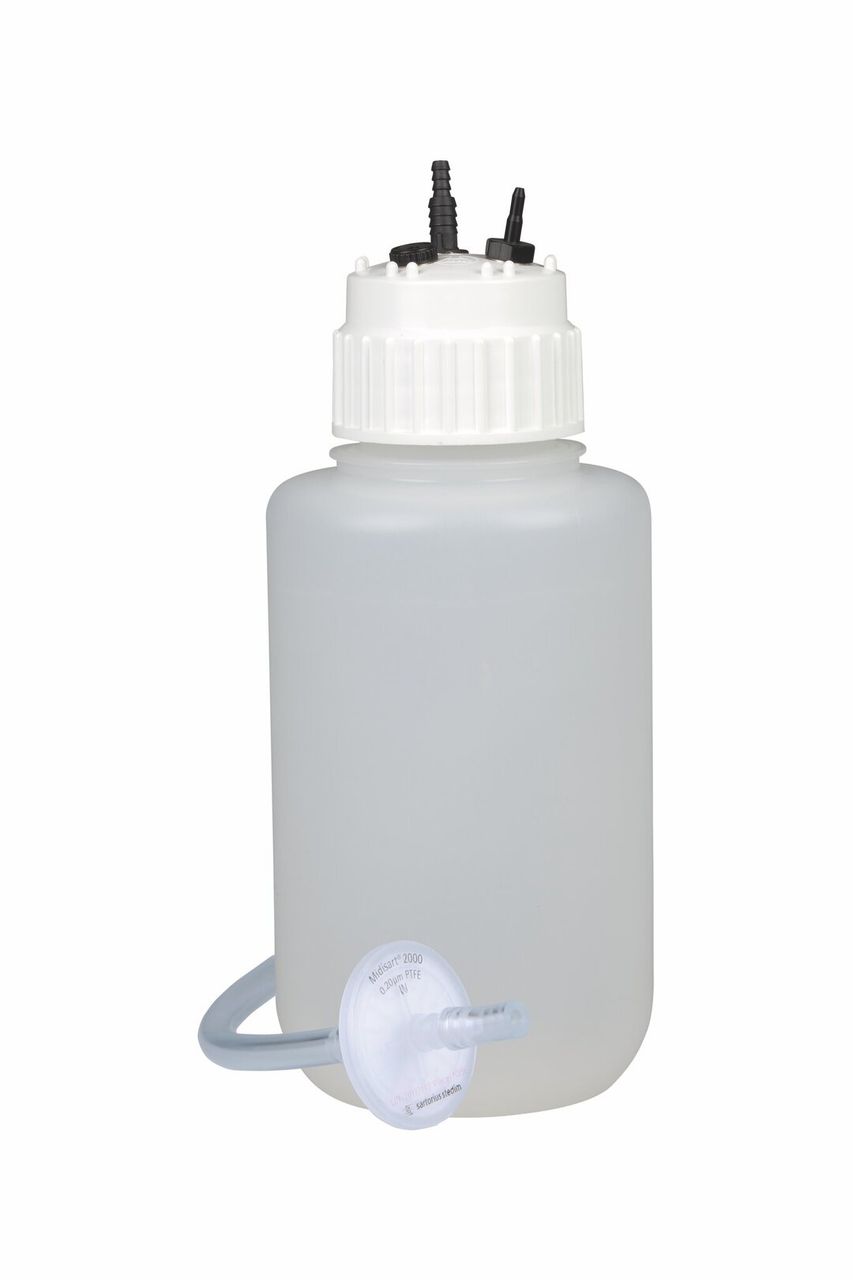

The BioChem-VacuuCenter BVC basic is designed for connection to an existing external vacuum source like a diaphragm pump or a vacuum network (e.g., VACUU·LAN®) and does not require electric power. The chemical-resistant mechanical vacuum controller always ensures an optimal operating vacuum. The controller opens only when needed thus limiting the gas load on the vacuum source. The evaporation of collected liquid is minimized. The inlet tubing integrated in the bottle head reduces aerosol and foam formation and ensures a long service life of the hydrophobic protection filter. The aspiration system is available either as BVC basic with 4l PP bottle or as BVC basic G with 2l coated borosilicate glass bottle.

für Zoom klicken

Technical data and graphs

Vacuum controller Mechanical vacuum controller
Control range 100 - 500 mbar
Collection bottle 2l Glass
Max. back pressure (abs.) 1.1 bar
Inlet connection Suction controller
Outlet connection Hose nozzle DN 6-10 mm
Protection class IEC 60529 IP 54
Weight 3.2 kg
NRTL certification No
Items supplied Complete fluid aspiration system for existing vacuum source, with automatic vacuum controll, hose nozzle DN 6/10 mm for connection to a vacuum supply, aspiration hand set VacuuHandControl VHC, collection bottle 2l made of glass, protection filter and manual.
