VACUU·VIEW extendedVacuum gauge

Overview

  • Precision and chemical resistance in an exceptionally wide range from atmosphere down to 10-3 mbar, one gauge only for both rough and fine vacuum
  • compact design with integrated sensors for useful setup in laboratory and process
  • the chemical resistant combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures a long product life even with aggressive chemicals
  • illuminated display, easy to read
  • display with menu driven handling, easy to use e.g. for unit settings
Cat. No.
20683210
Upon Request $1,910.00
- +

Inquire

Vacuum gauge in action

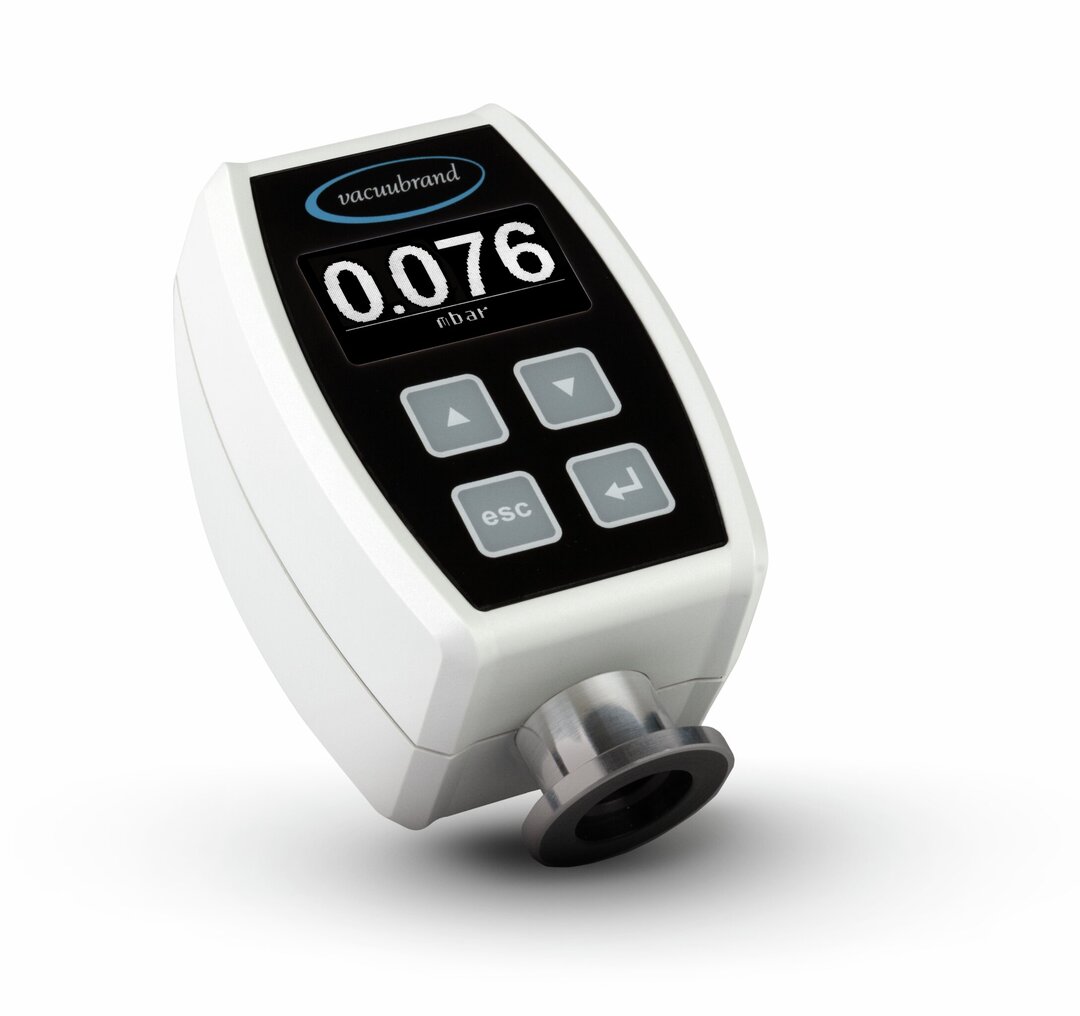

For the monitoring of your vacuum processes in the rough and fine vacuum range, the new vacuum gauges VACUU·VIEW extended are perfect! The heavy duty combination of ceramic diaphragm sensor and ceramic jacketed Pirani sensor ensures reliable readings in the wide range from atmosphere down to 10-3 mbar.

für Zoom klicken
More Information
Promotion Label Select Promotion

Technical data and graphs

Upper measuring limit in mbar/hPa 1100 mbar
Upper measuring limit in torr 825 torr
Lower measuring limit in mbar/hPa 1 x 10-3
Lower measuring limit in torr 1 x 10-3 torr
Measurement principle Ceramic diaphragm sensor + ceramic jacketed Pirani sensor
Accuracy of measurement +- 15% of indicated value in the range 0.01-5 mbar / +-3 mbar for > 5 mbar mbar/hPa/torr
ATEX conformity II 3/- G Ex h IIC T4 Gc X Internal Atm. only
Temperature coefficient +- 0.2 mbar/hPa/0.15 torr /K mbar/hPa/torr /K
Vacum connection Small flange KF DN 16 and hose nozzle DN 6/10 mm
Lower ambient temperature (storage) -10 °C
Upper ambient temperature (storage) 60 °C
Lower ambient temperature (operation) 10 °C
Upper ambient temperature (operation) 40 °C
Max. media temperature for continuous operation 40 °C
Max. media temperature short term 80 °C
Material of outer housing Robust plastic housing with good chemical resistance
Venting valve No
Protection class IEC 60529 IP 54
Protection class UL50E Type 5
Protection class front side IEC 60529 IP 54
Weight 0.19 kg
Dimension L in mm 50 mm
Dimension B in mm 62 mm
Dimension H in mm 103 mm
Vacuum sensor Integr.
Cable length connection in m 2 m
NRTL certification Yes
Items supplied Vacuum gauge with integrated vacuum sensors, ready for operation, with kit hose nozzle DN 6/10 mm, wall-plug power supply and manual.

Downloads

Vacuum gauge VACUU·VIEW extended1100 - 0.001 mbarcertification (NRTL): C/US100-230 V/50-60 Hz,plug CEE/CH/UK/US/AUS
VACUU·VIEW extended Vacuum gauge
Safety information for vacuum equipment
Manual PDF 5.4 MB
Multilingual Download
Manual vacuum gauge / controller
Manual PDF 5.3 MB 5.5 MB 5.2 MB 5.2 MB 5.2 MB 5.2 MB 5.2 MB 5.1 MB 5.2 MB 5.2 MB 5.2 MB
Download Download Download Download Download Download Download Download Download Download Download
