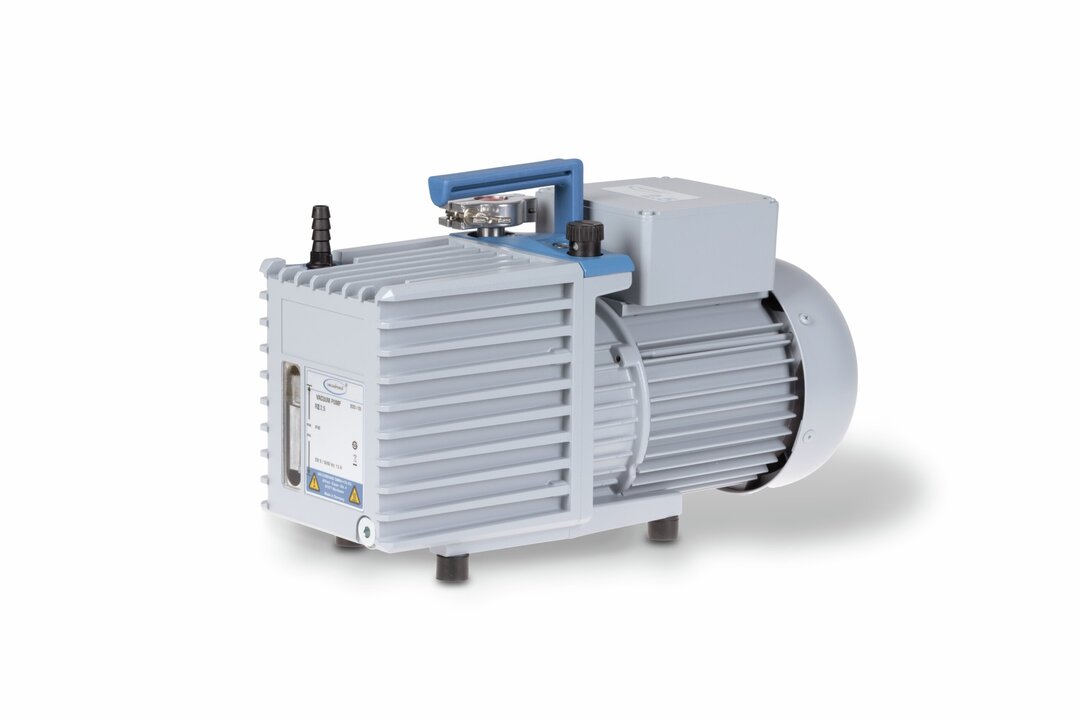

RZ 2.5Rotary vane pump
Overview
- high flow rates even at vacuum levels approaching ultimate vacuum
- very good ultimate vacuum even with gas ballast
- vacuum-tight at switch-off; external anti-suckback valve not needed
- large oil volume: Long intervals between oil changes
- ease of maintenance due to telescopic design
Ultimate vacuum
2 x 10-3 mbar
Ultimate vacuum with gas ballast
1 x 10-2 mbar
Max. pumping speed 50 Hz
2.3 m3/h
Rotary vane pump in action

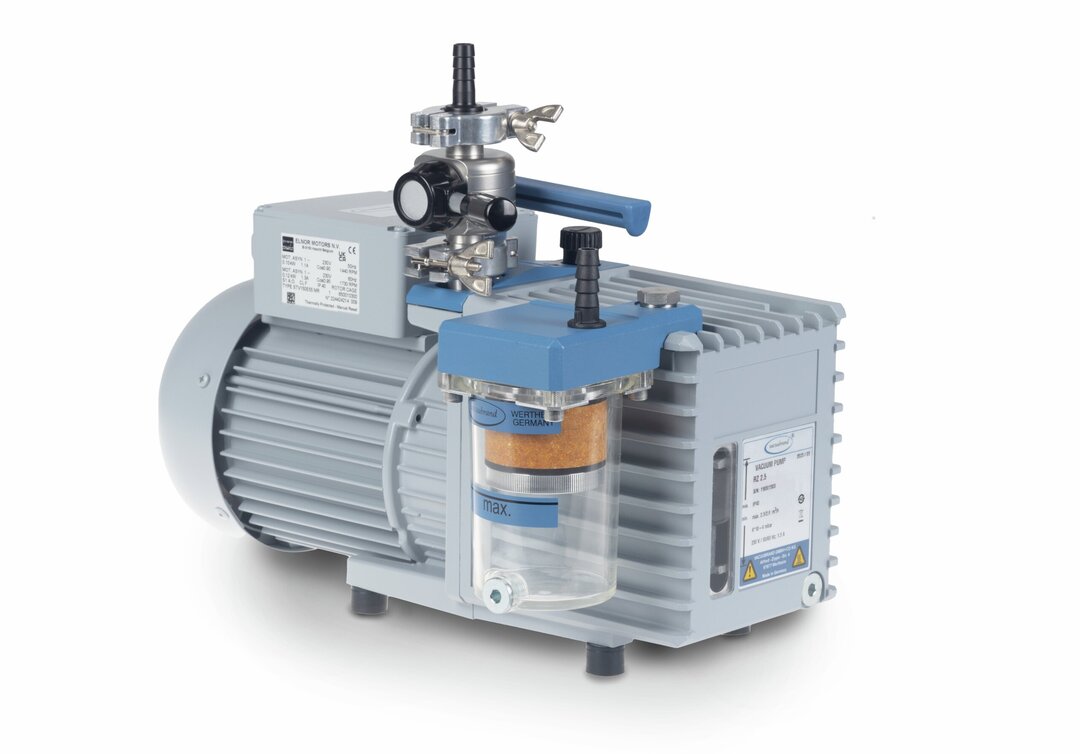

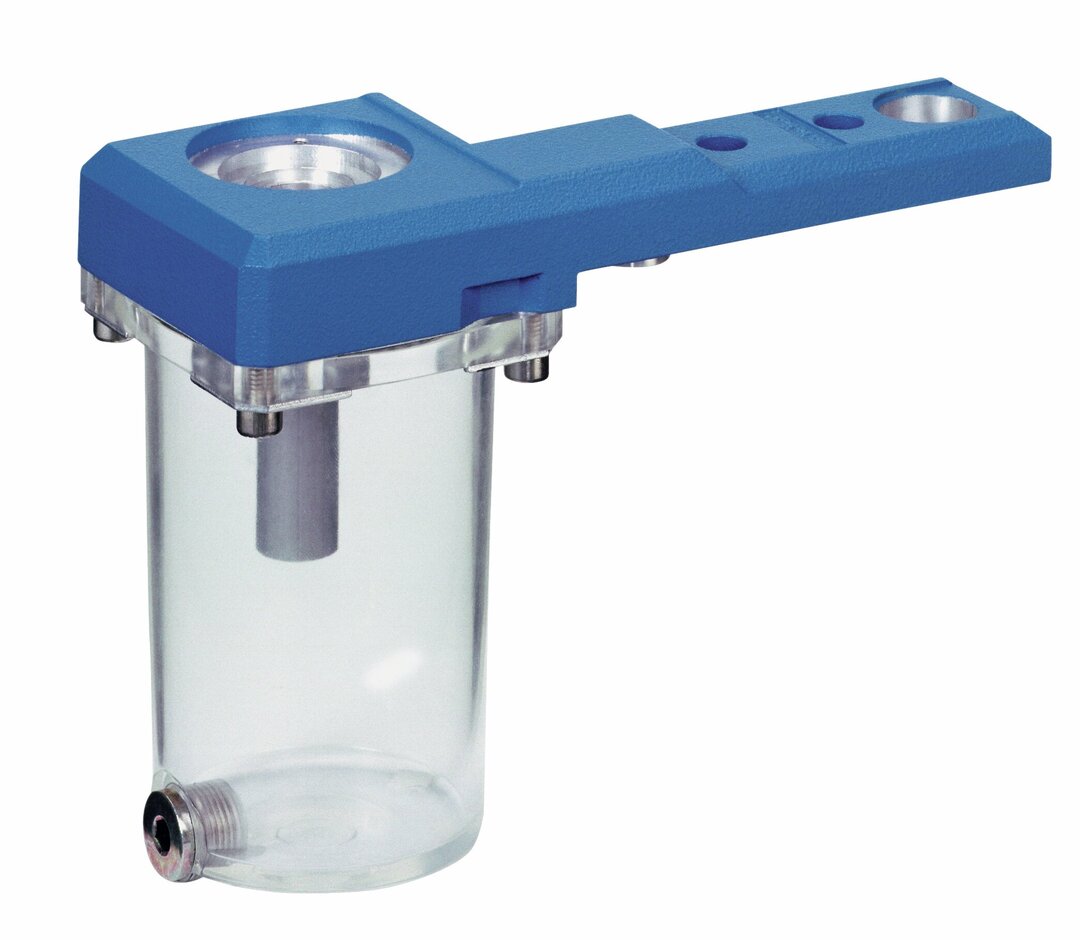

The one-stage RE 2.5 and two-stage RZ 2.5 are high-performance rotary vane pumps with extra compact design and low weight. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium gas flow rate. The RZ 2.5 is also available combined with the oil mist filter (FO) and the VS 16 valve as a package. Typical applications are lyophilization, fine vacuum distillation and evacuation of small volumes, e.g., for utilization of µ-focus x-ray tubes or filling with pure gases.
für Zoom klicken
Technical data and graphs

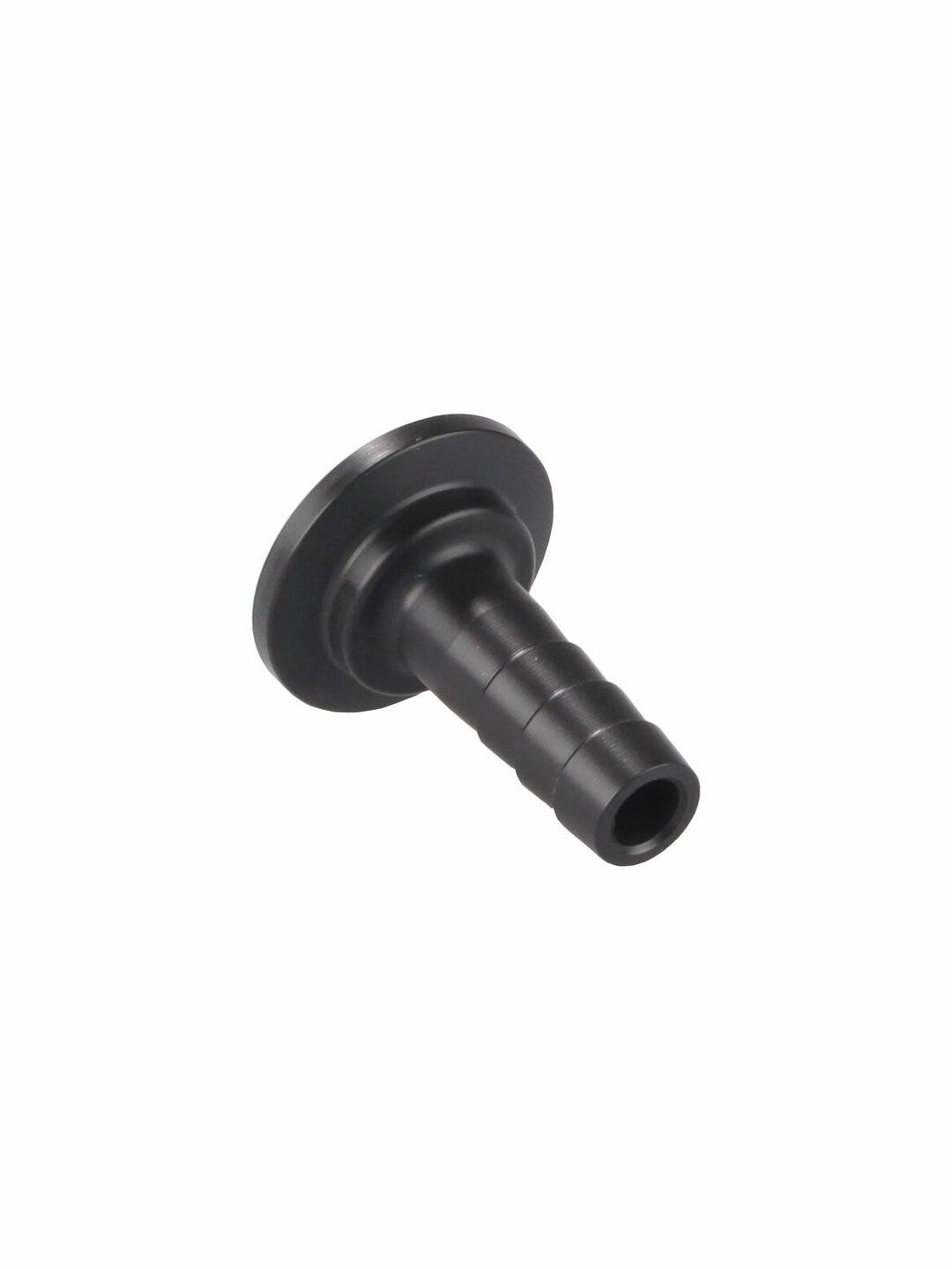

| Max. pumping speed 50 Hz | 2.3 m3/h | Select diagram |
| Max. pumping speed 60 Hz | 1.65 cfm | Select diagram |
| Ultimate partial vacuum (abs.) without gas ballast | 4 x 10-4 mbar | |
| Ultimate vacuum | 2 x 10-3 mbar / 1.5 x 10-3 torr | |
| Ultimate vacuum with gas ballast | 1 x 10-2 mbar / 0.75 x 10-2 torr | |
| Number of stages | 2 | |
| Vacuum controller | 17 | |
| Lower ambient temperature (operation) | 12 °C | |
| Upper ambient temperature (operation) | 40 °C | |
| Lower ambient temperature (storage) | -10 °C | |
| Upper ambient temperature (storage) | 60 °C | |
| Max. outlet pressure (abs.) | 1.1 bar | |
| Oil capacity (B-Oil) min. | 0.36 l | |
| Oil capacity (B-Oil) max. | 0.84 l | |
| Inlet connection | small flange KF DN 16 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | 0.1 kW | |
| Rated motor speed at 50/60 Hz | 1500/1800 min-1 | |
| Protection class IEC 60529 | IP 40 | |
| Dimension L in mm | 390 mm | |
| Dimension B in mm | 156 mm | |
| Dimension H in mm | 240 mm | |
| Weight | 14.2 kg | |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 48 dBA | |
| NRTL certification | No | |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. | |
| Rated mains voltage range 1 | 230 V | |
| Mains frequency 1 | 50-60 Hz |
für Zoom klicken
Max. pumping speed 50 Hz
für Zoom klicken
Max. pumping speed 60 Hz
für Zoom klicken
Pump down graph 50 Hz (10 l volume)
für Zoom klicken
Pump down graph 60 Hz (10 l volume)
