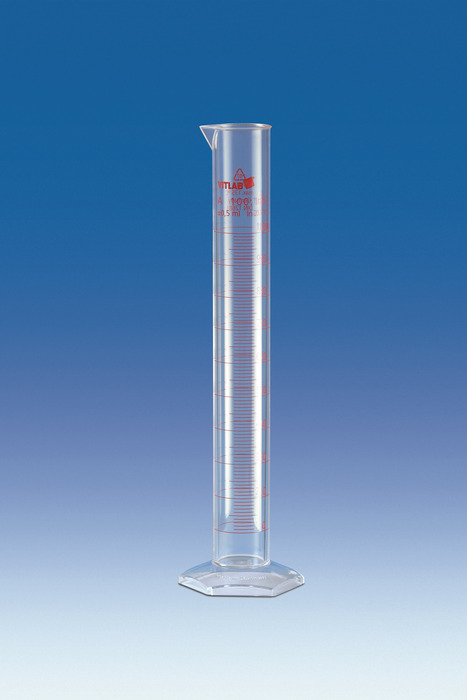

Graduated cylinders, PMP, Class A, tall form, red printed graduation
Choose your product:
Nominal volume:
10 ml
25 ml
50 ml
100 ml
250 ml
500 ml
1,000 ml
2,000 ml
Subdivision:
0.2 ml
0.5 ml
1 ml
2 ml
5 ml
10 ml
20 ml
| Cat.-No. | Nominal volume | Subdivision | Height | Error limit in ml |
|---|---|---|---|---|
| 64614 | 10 ml | 0.2 ml | 145 mm | 0.1 ml |
| 64714 | 25 ml | 0.5 ml | 170 mm | 0.25 ml |
| 64814 | 50 ml | 1 ml | 200 mm | 0.5 ml |
| 64914 | 100 ml | 1 ml | 250 mm | 0.5 ml |
| 65014 | 250 ml | 2 ml | 315 mm | 1 ml |
| 65114 | 500 ml | 5 ml | 360 mm | 2.5 ml |
| 65214 | 1,000 ml | 10 ml | 440 mm | 5 ml |
| 65414 | 2,000 ml | 20 ml | 535 mm | 10 ml |
| Quantity | Price per | Price | |||
|---|---|---|---|---|---|
Product Detail
Crystal clear. DE-M marked.
With red printed graduations and ring marks at the primary scale points, calibrated “In”.
The lot certificate supplied bears the batch number and the actual nominal value ascertained under the test conditions. The resulting deviations from the nominal value fall well under the allowed tolerances of Class A according to DIN 12681 and ISO 6706.
With printed batch number and the year of production.
Hexagonal base with bottom studs provides high stability.
To preserve markings, do not clean at temperatures exceeding 60 °C. Thus, conditionally autoclavable at 121 °C (2 bar) according to DIN EN 285. For autoclaving we recommend the design with molded graduations (Cat.-No. 64604 – 65304).
Also available with DAkkS calibration certificate or individual quality certificate.
