KF DN 16Centring ring for small flange

Overview

Cat. No.
20660124
Upon Request $49.80
Add to Compare list
- +
KF DN 16 Centring ring for small flange

By submitting the contact form, you agree to the processing of your data for the purpose of answering your request. Further information and information on revocation and objection can be found in our privacy statement.

Inquire
Add to Compare list

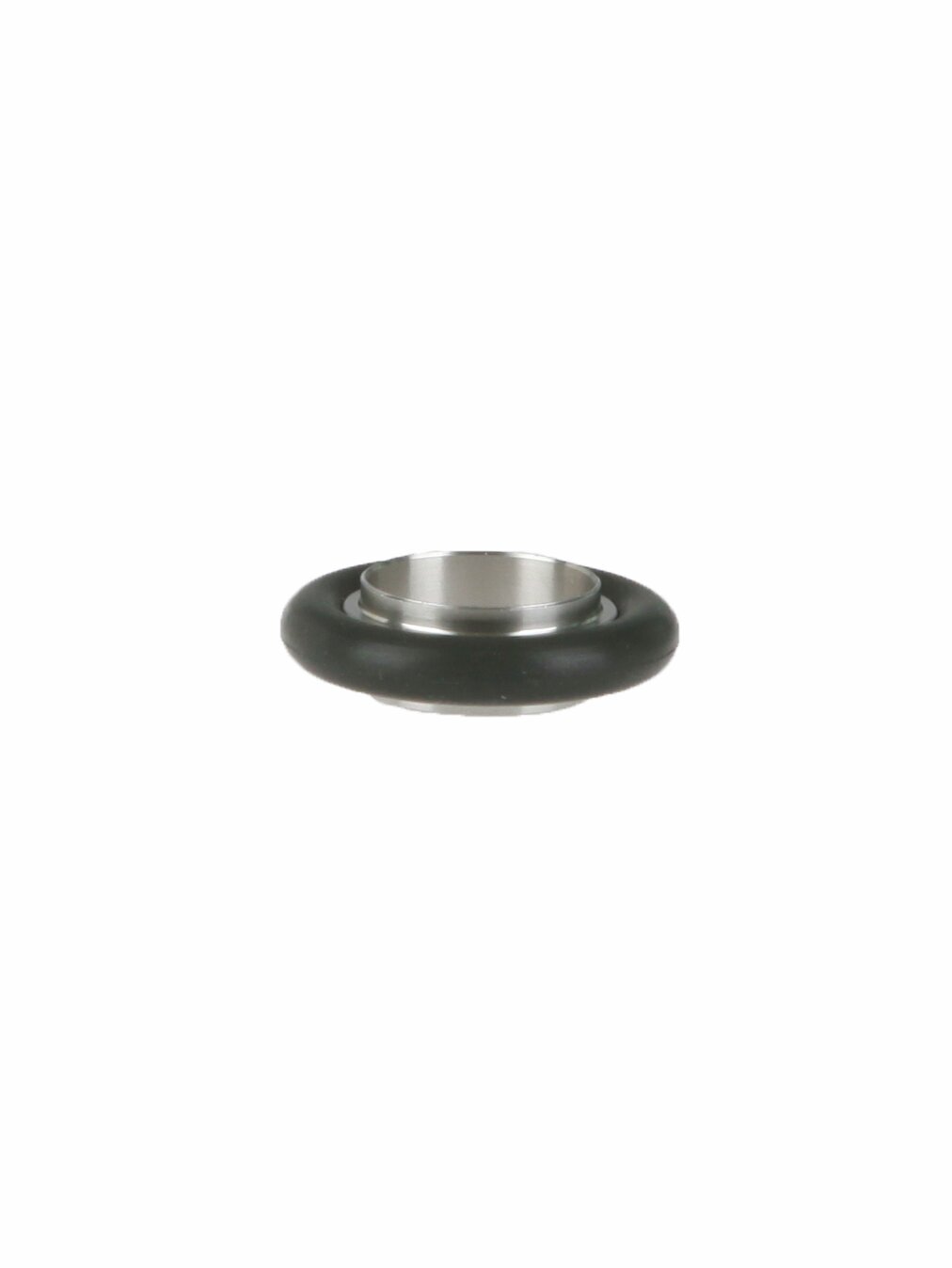

main product photo

Centring ring for small flange in action

Centring ring, stainless steel, KF DN 16, sealing ring FPM

für Zoom klicken

Technical data and graphs

Dimensions A in mm 17 mm
Dimension B in mm 16 mm
Dimensions C in mm 18.5 mm
Sealing ring inner diameter x cord thickness in mm 18 x 5
