VACUU·BUS®Analog-I/O-Module 0-10V VACUU·BUS®

Overview

  • analog output of the vacuum measurment as a 0-10 V signal
  • analog setting of the target vacuum as a 0-10 V signal
  • configurable for the input and output of set and/or actual values of the motor speed with VARIO® pumps or VARIO® pumping units
  • resolution of the analog output signal is 2.5 mV
  • color LED status indication
Cat. No.
20636229
Upon Request $520.00
- +

Inquire

Analog-I/O-Module 0-10V VACUU·BUS® in action

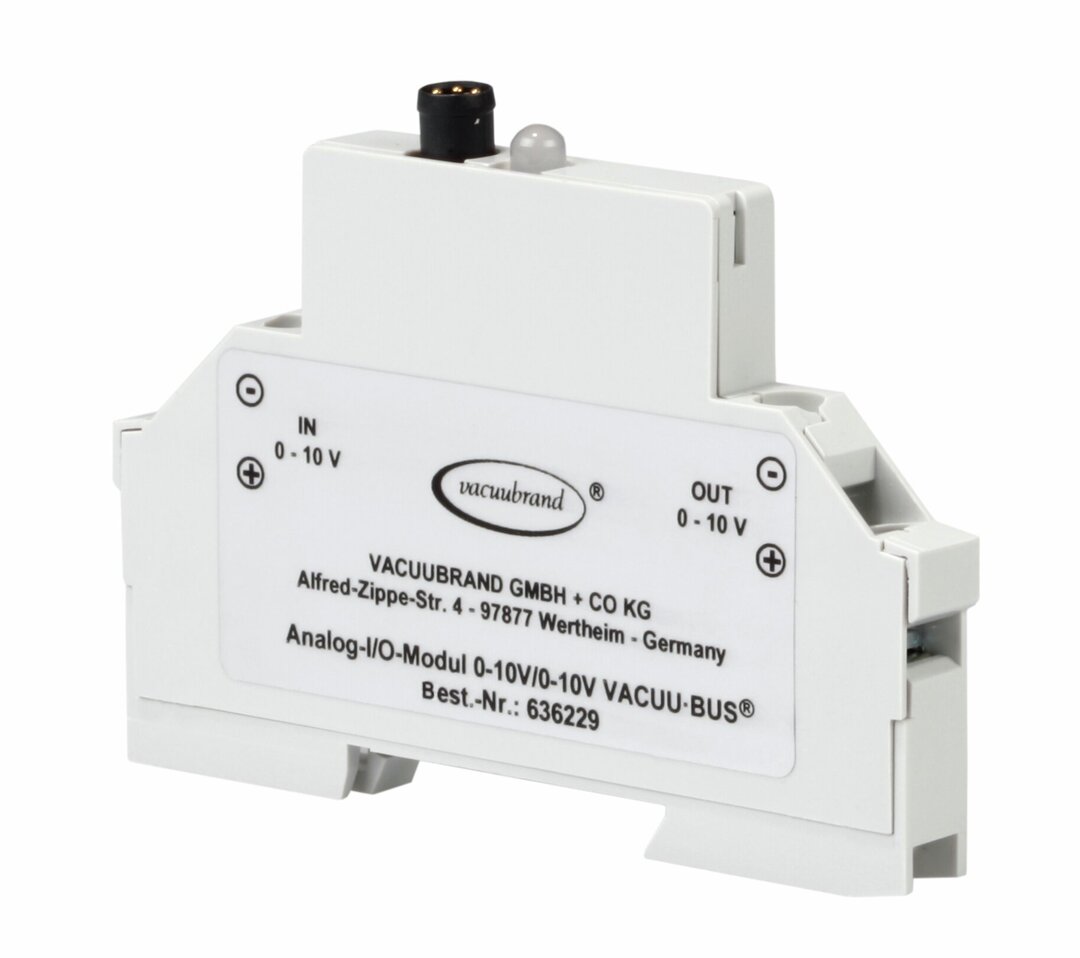

Analog I/O interface module 0-10 V VACUU·BUS, with 2 m VACUU·BUS cable

The Analog-I/O-Module is an analog interface for the VACUU·BUS® system of vacuum measuring gauges and controllers. The input and output signal follows the industry standard of 0-10 V. In the default configuration of the module the actual vacuum value is indicated as a 0-10V output. Therefore the vacuum controllers VACUU·SELECT and CVC 3000 as well as the measuring gauge DCP 3000 can be easily connected to a plotter and used for GMP documentation. Other module configurations allow input and output of vacuum level and motor speed as 0-10V signals. I/O (Input/Output) modules are add-on interfaces for VACUUBRAND gauges and controllers. They are mostly used in process technology, but also in laboratories. Most process data systems work with analog 0-10 V (or 4 to 20 mA) signals or use digital signals, mostly based on 24 V DC. Both signal types are industrial standards and can be provided with these I/O modules. For example in process technology a measured pressure value can be transferred to a PLC via an Analog-I/O-Module. Via a Digital-I/O-Module a start/stop signal from a PLC can be sent to a vacuum controller in order to control a connected pump. In laboratories occasionally a chart recorder is used for documentation purposes. Using an Analog-I/O-Module a pressure signal can be transferred to a 0-10 V signal and used as input to a chart recorder. The I/O modules are connectable with VACUU·BUS® compatible vacuum gauges and controllers which can also be used for I/O module configuration.

für Zoom klicken

Technical data and graphs

Items supplied Analog-I/O-Module 0-10V VACUU·BUS® complete with cable VACUU·BUS® 2m.
